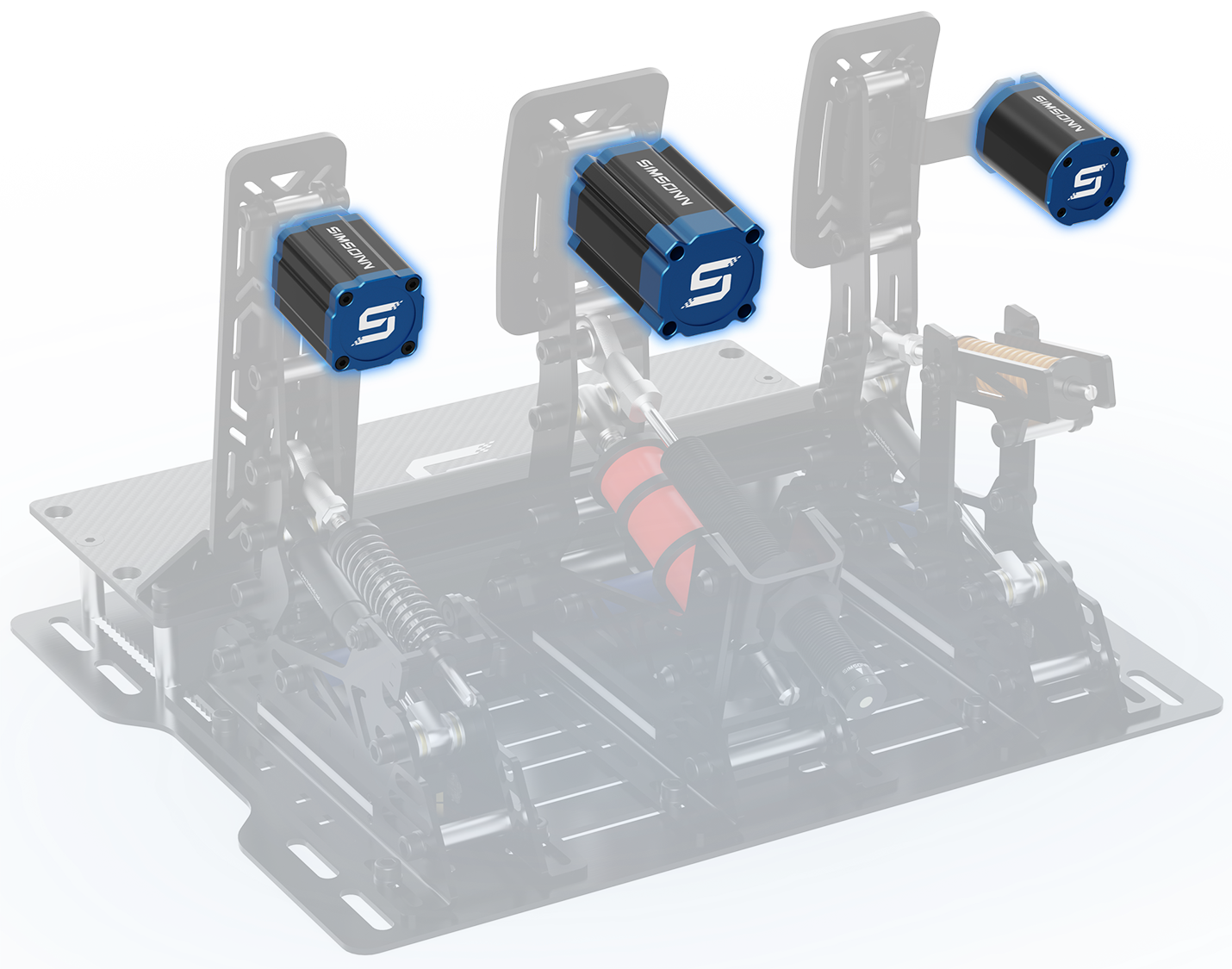

SIMSONN VAM Series — Pedal Haptic Reactors

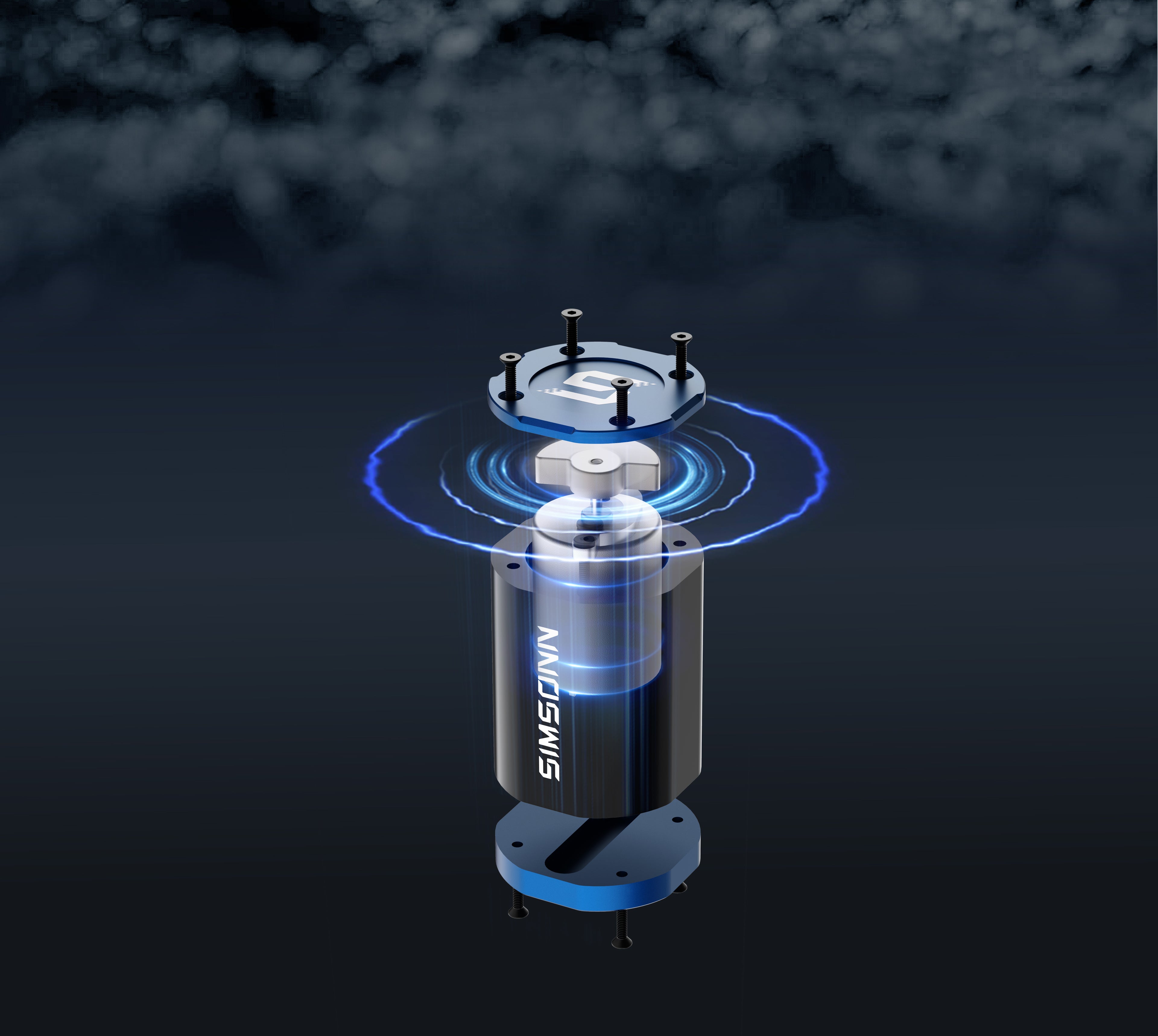

Custom High-Performance Motor
The premium aluminum alloy housing integrates a high-speed eccentric motor with speeds of up to 8,500 RPM and vibration frequencies of up to 100Hz, delivering excellent noise reduction and heat dissipation even during high-speed vibration.

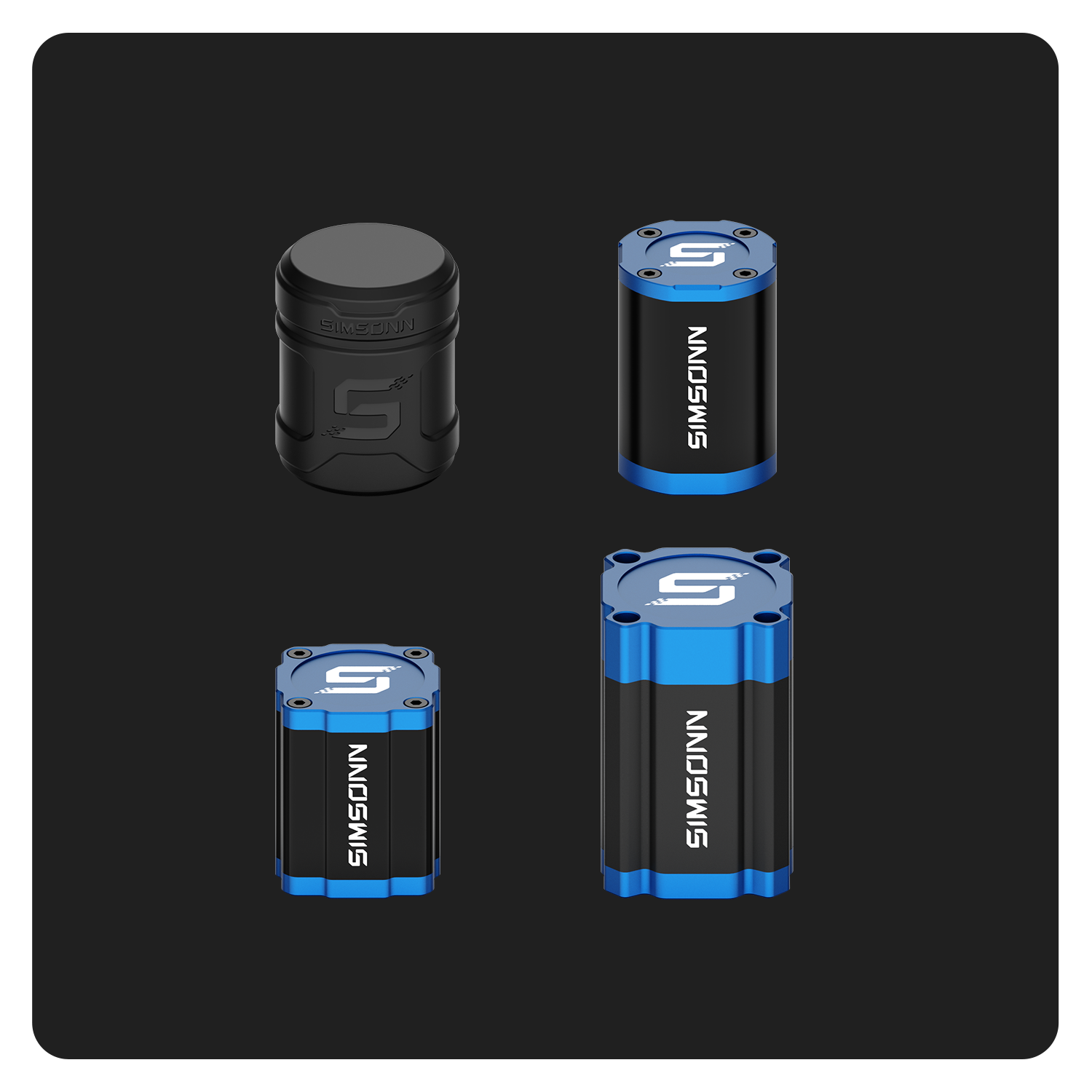

VAM Series
Vibration Auxiliary Module
Accurately replicating the physical sensations of real racing cars, to deliver a truly
immersive and realistic tactile experience.

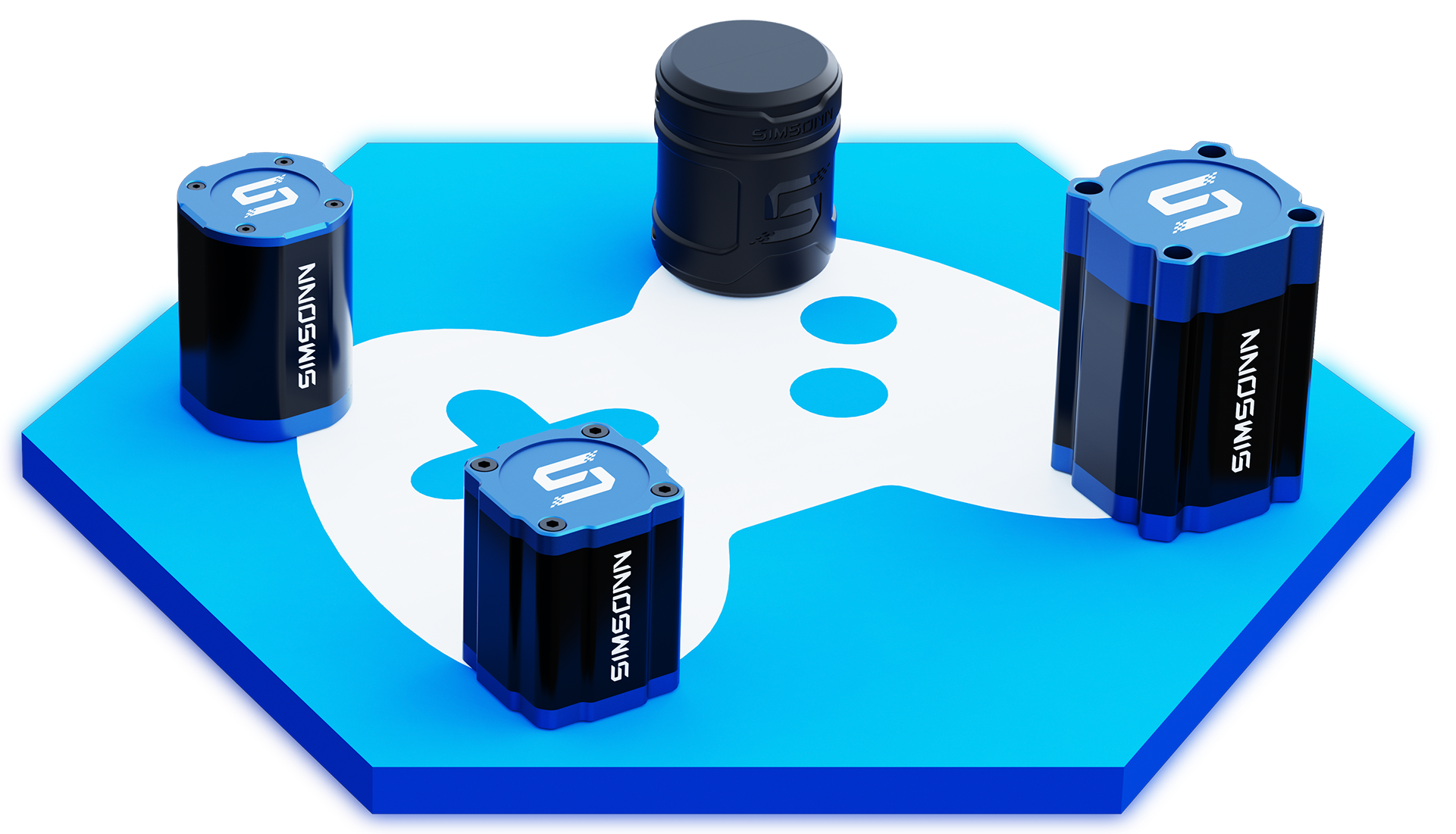

Vibration Module
Comparison
VAM Neo
39.6 * 39.6 * 49.4 mm
Aluminum Alloy
Linear Voice Coil Motor
Frequency Adjustment
Supported
Force Adjustment
232g
24V Power Adapter
Suitable for Throttle Pedal
VAM2
38 * 38 * 54 mm
Aluminum Alloy
Eccentric Rotating Mass Motor
Frequency Adjustment
not Supported
Force Adjustment
190g
24V Power Adapter
Suitable for Clutch Pedal
VAM Pro
46 * 46 * 72 mm
Aluminum Alloy
Linear Voice Coil Motor
Frequency Adjustment
Supported
Force Adjustment
477g
24V Power Adapter
Suitable for Brake Pedal
VAM
44 * 44 * 55 mm
Plastic
Eccentric Rotating Mass Motor
Frequency Adjustment
not Supported
Force Adjustment
115g
24V Power Adapter
Suitable for Clutch Pedal
Professional-Grade
Simulation Control Software

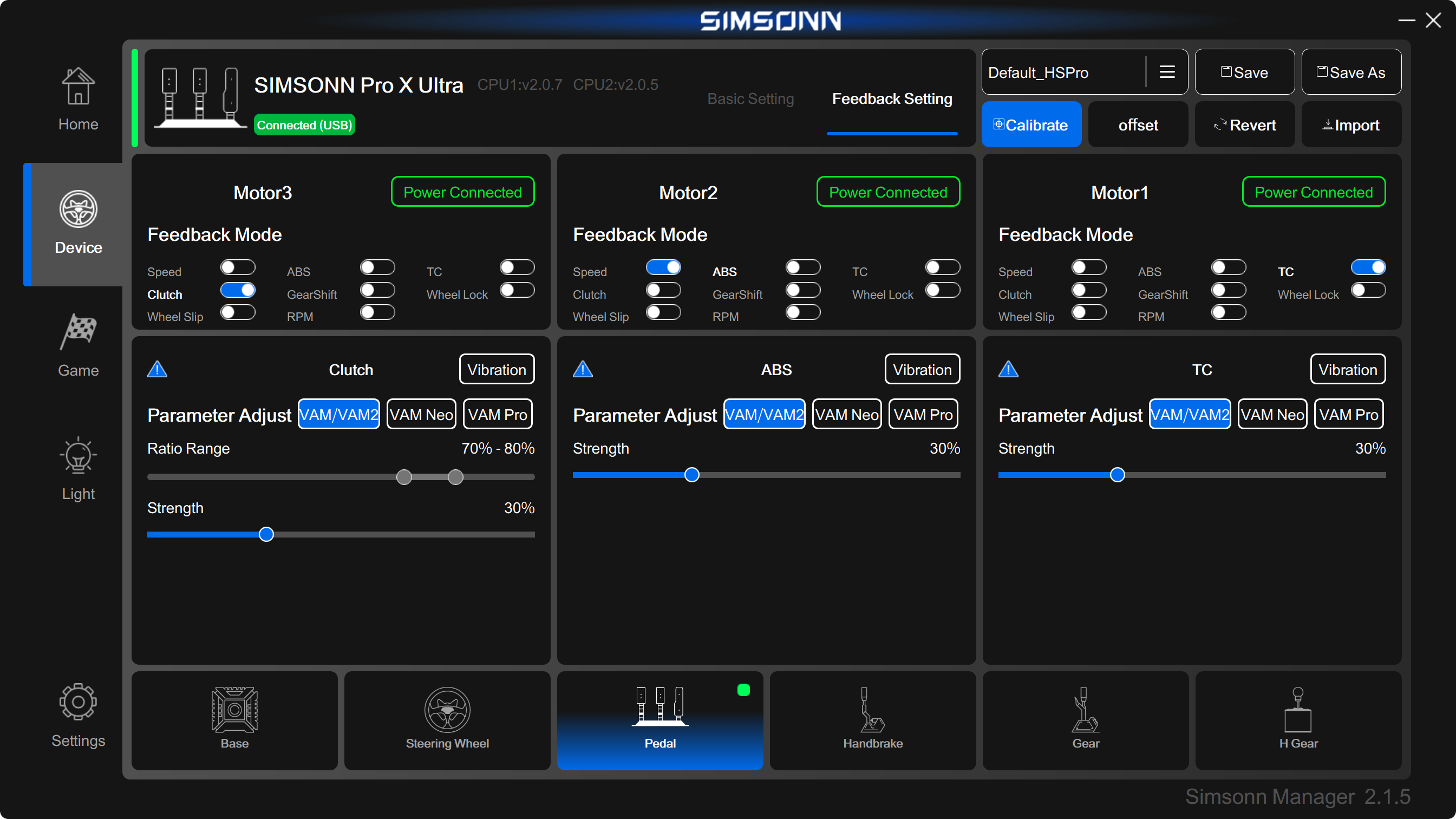

SIMSONN Plus X | SIMSONN Pro X Ultra Software — Customizable Pedal Vibration Feedback for ABS, Traction Control & Clutch
The free SIMSONN Plus X | SIMSONN Pro X Ultra tuning software gives you full control over your sim racing pedal feedback. Each of the three pedal motors — throttle, brake and clutch — can be independently configured with realistic telemetry-driven vibration effects, including ABS pulsation, traction control (TC) intervention, wheel lock, wheel slip, gear shift and RPM cues. Fine-tune every effect with adjustable vibration strength and frequency (e.g. 77% ABS strength at 50Hz), plus a clutch bite-point ratio range, so you feel exactly when the tires lock, the rear steps out, or the clutch engages — immersive, data-rich feedback that works seamlessly with load cell pedals and major sim racing titles. Profiles can be saved, imported and reverted in one click for different cars and tracks.
The proprietary SIMSONN Manager software adds multiple telemetry feedback features*1 to recreate the driving feel of various vehicles, while supporting precise adjustment of vibration frequency (60Hz–100Hz) and vibration intensity (0%–100%).
*1：V2.1.8 adds telemetry feedback features including acceleration/deceleration G-force, speed effects, collision effects, and road impact effects.
When using telemetry with SIMSONN Manager, be sure to select the mode that matches the model of your vibration motor in the software to prevent damage to the device. We reserve the right to refuse warranty or after-sales service for any damage caused by selecting a mode that does not match your product.
Full Compatibility
with SimHub
SimHub telemetry vibration support
This product is now supported by SimHub, unlocking a wide range of parameter adjustments.
1.Requires SimHub version 9.9.2 or later.
2.Do not use SimHub and SIMSONN Manager simultaneously, as this may cause abnormal device operation.
Open Ecosystem
The VAM Series can be connected directly to a PC through the Plus X / Pro X Ultra Control Box*2. With a user-defined mounting solution, the Vibration Auxiliary Modules can be used with third-party pedals.
*2：The Plus X / Pro X Ultra Control Box is sold separately.
SIMSONN VAM Series
Vibration Auxiliary Modules
Third-party pedals

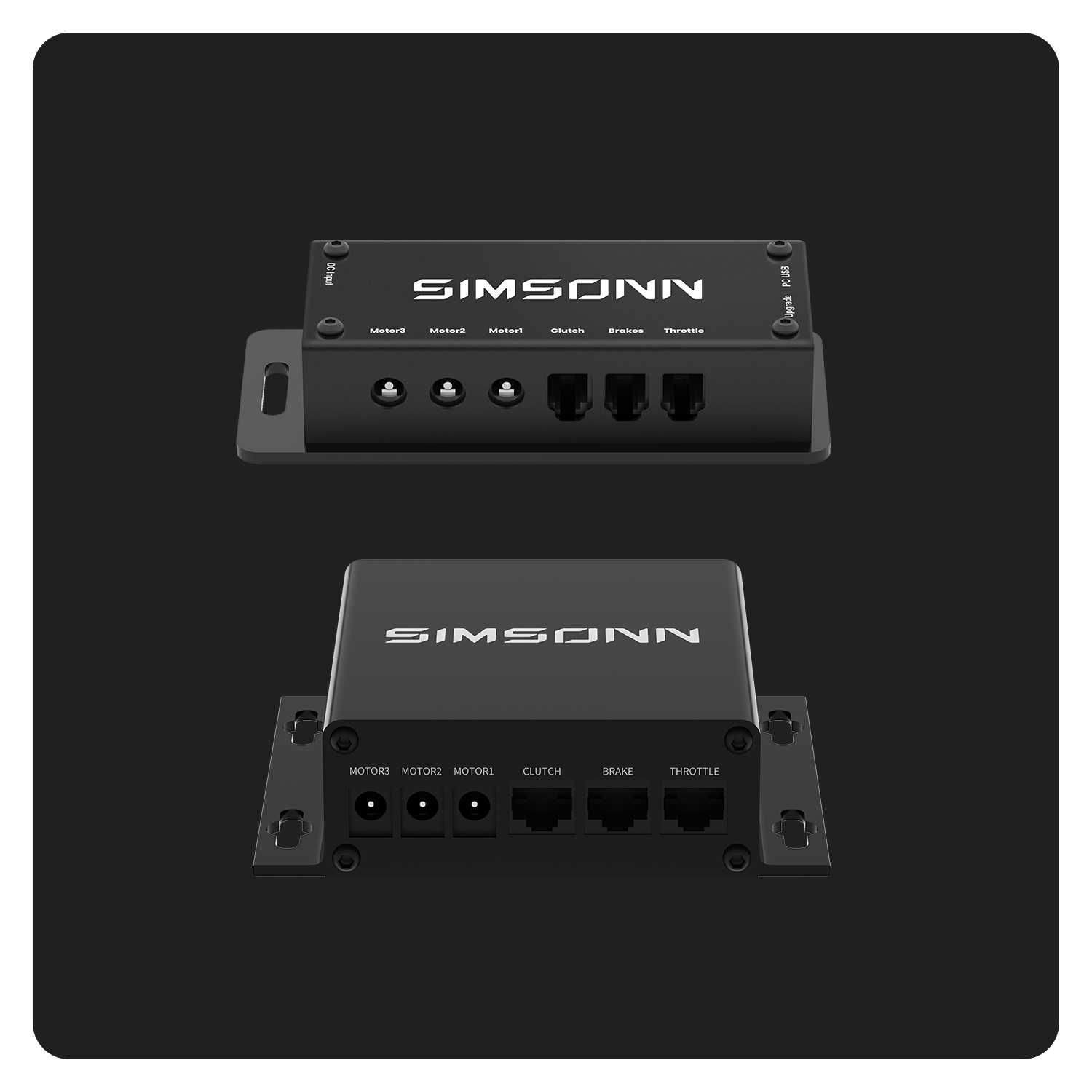

Plus X / Pro X Ultra
Control Box
PC
Dimensions VAM haptic reactor dimensions and mounting holes
(Unit:mm)
SIMSONN VAM2 Motor Dimensions & Mounting Holes
All measurements in millimeters. The VAM2 vibration motor body measures 54×38mm with a 38×38mm round mounting face, secured by four M4 bolts on a 23mm hole pattern (15mm inner spacing). The compact cylindrical housing fits tight pedal rigs and pairs with SIMSONN adapter plates for bolt-on installation to throttle, brake, or clutch pedals.
VAM2 Dimensions and Mounting Holes
VAM2 Adapter Plates — Throttle, Brake & Clutch Mounting
All measurements in millimeters. Two adapter plates are included with the VAM2 for bolt-on mounting to your sim racing pedals: an L-shaped plate for the throttle and brake (63×42mm base, 19.4mm upright, nine Ø4.2mm holes), and a Z-shaped plate for the clutch (87.5×42mm, 20mm tab, ten Ø4.2mm holes). The pre-drilled hole patterns fit the included M4/M5 hardware for a rigid, flex-free mount.
for Throttle/Brake Pedals
for Clutch Pedal
