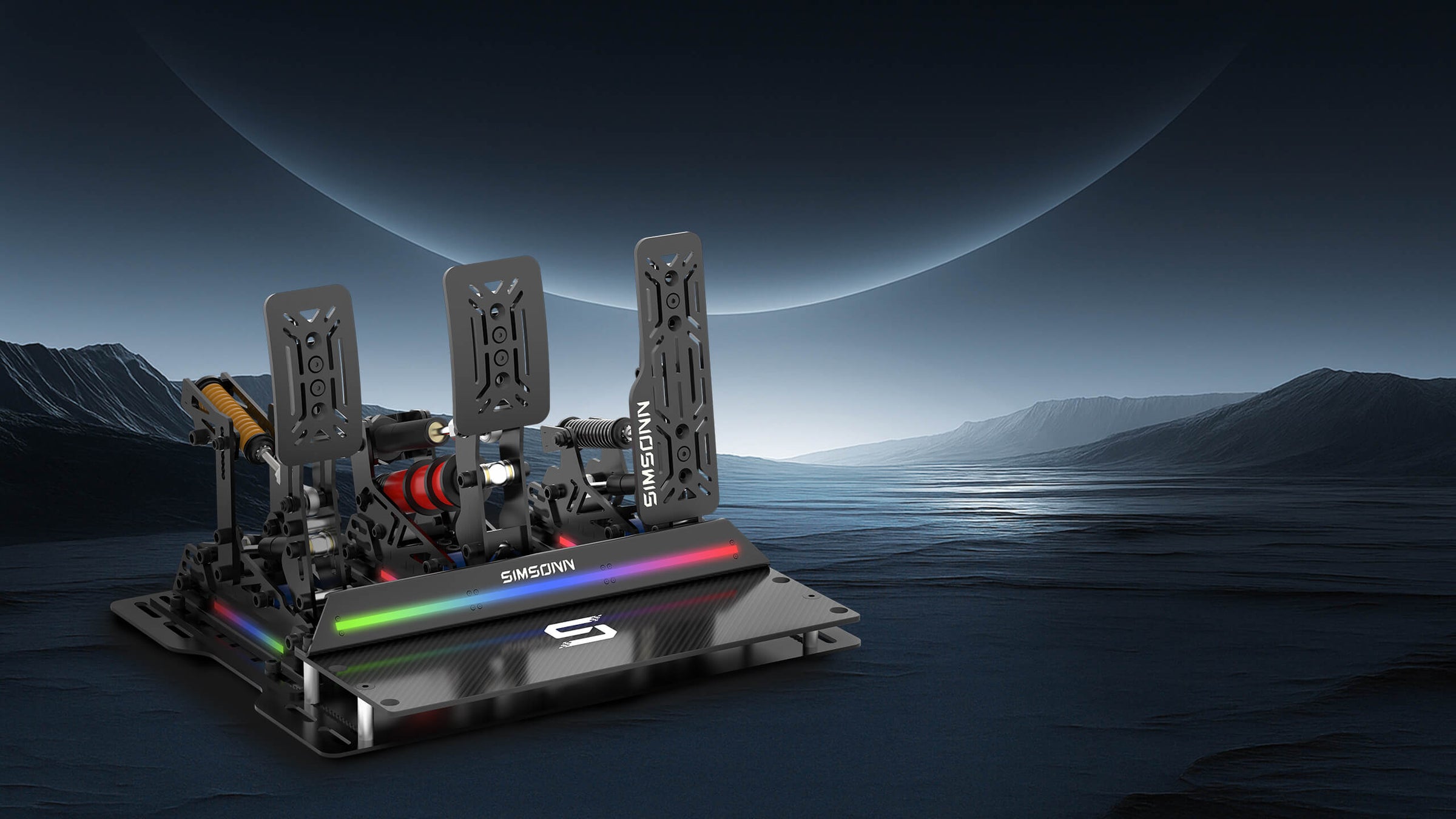

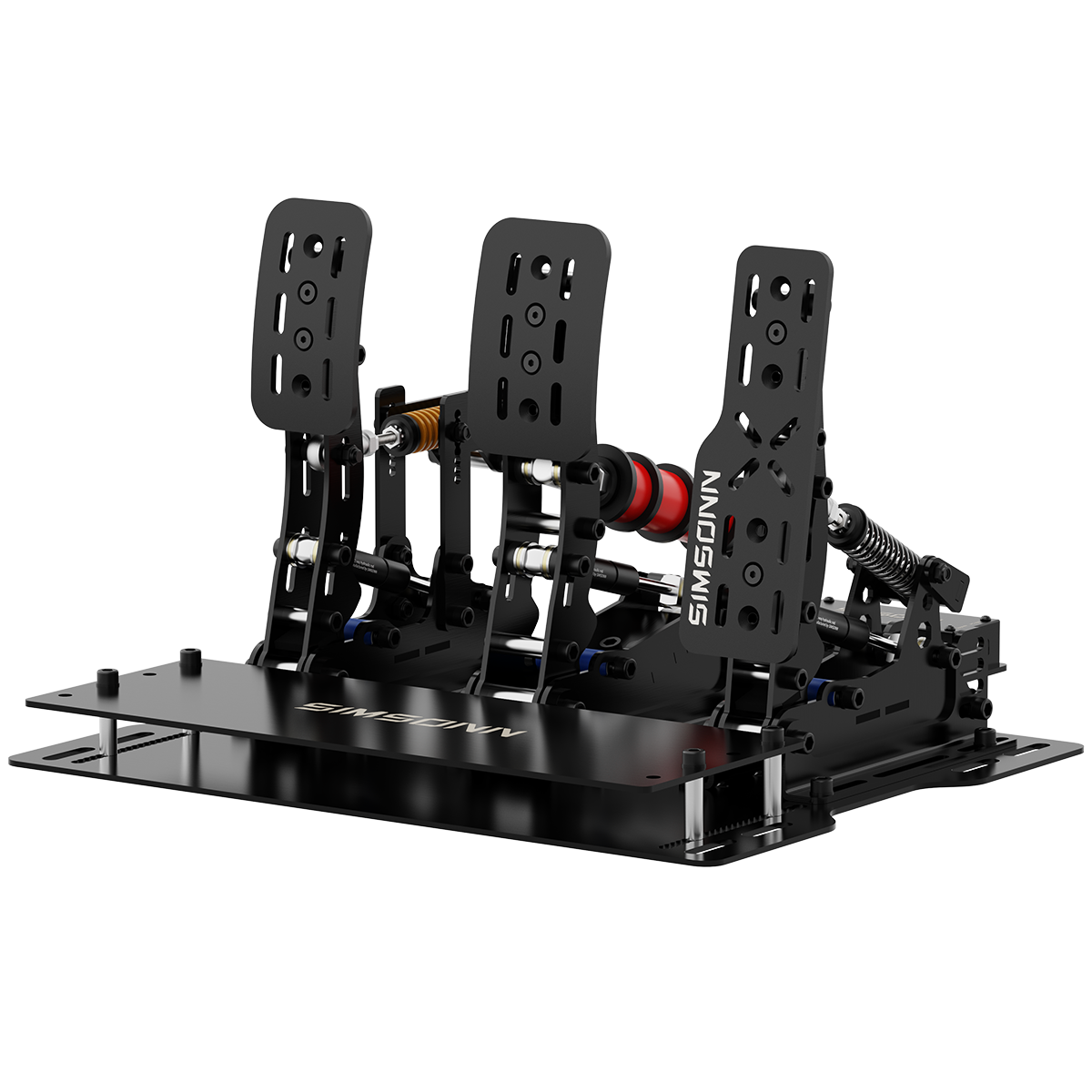

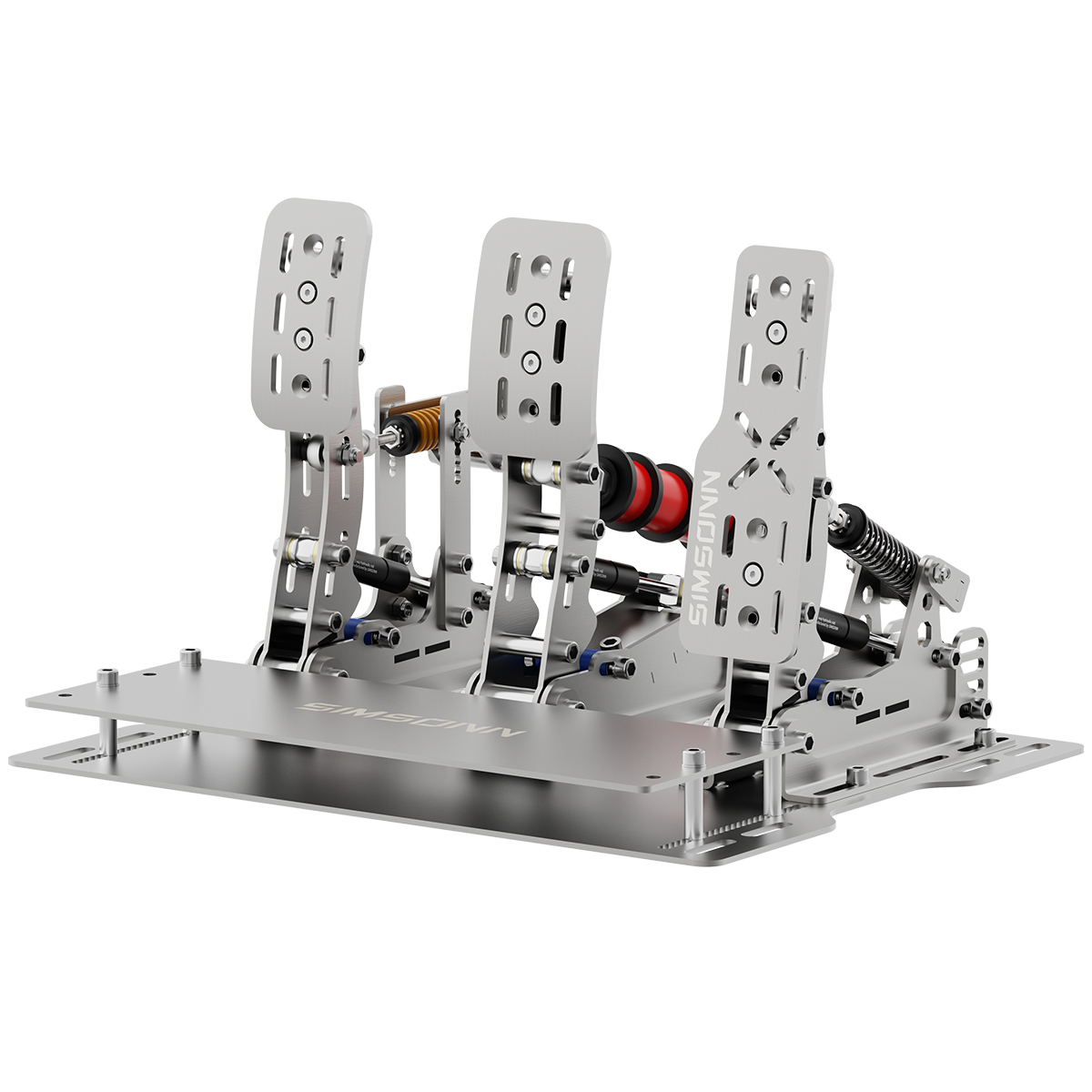

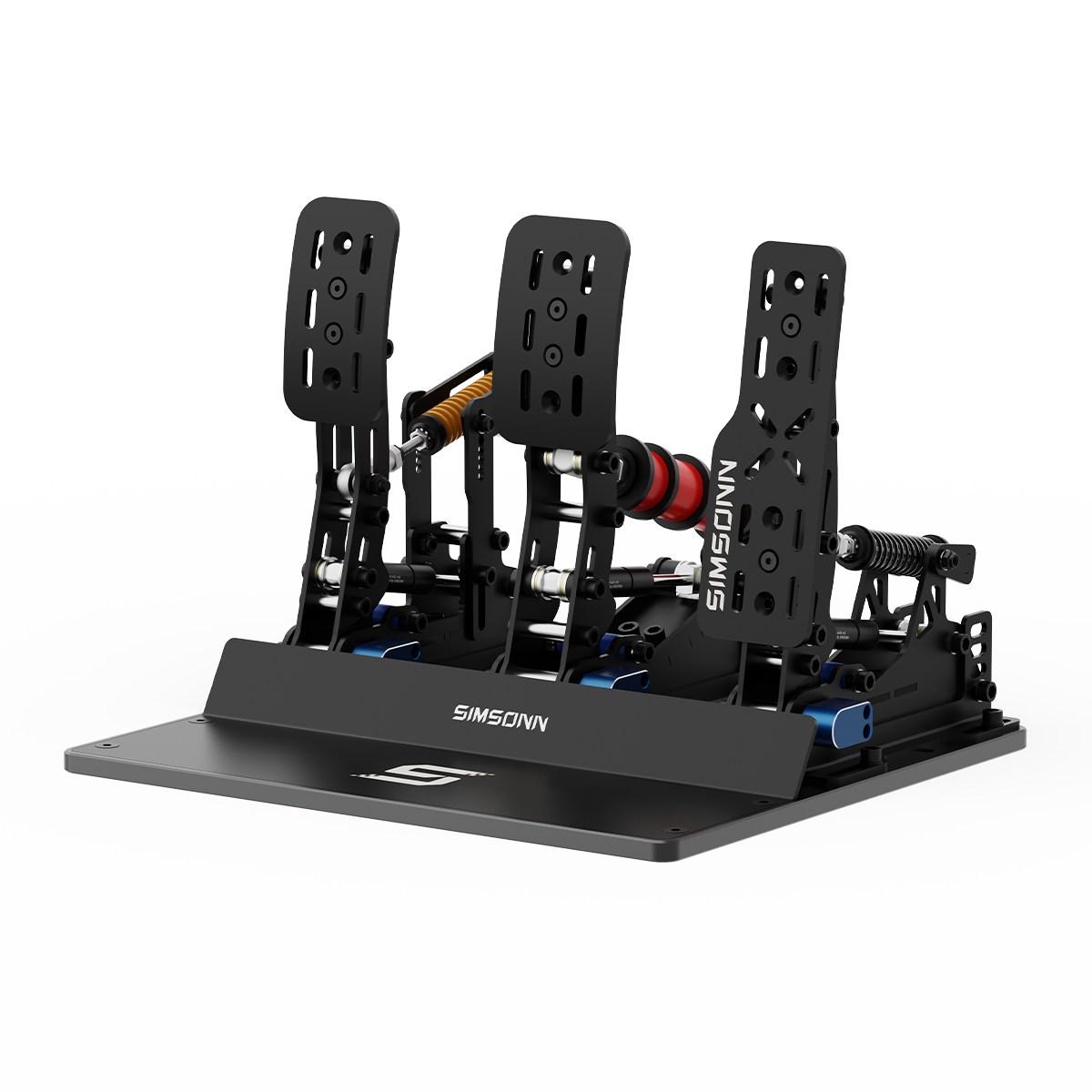

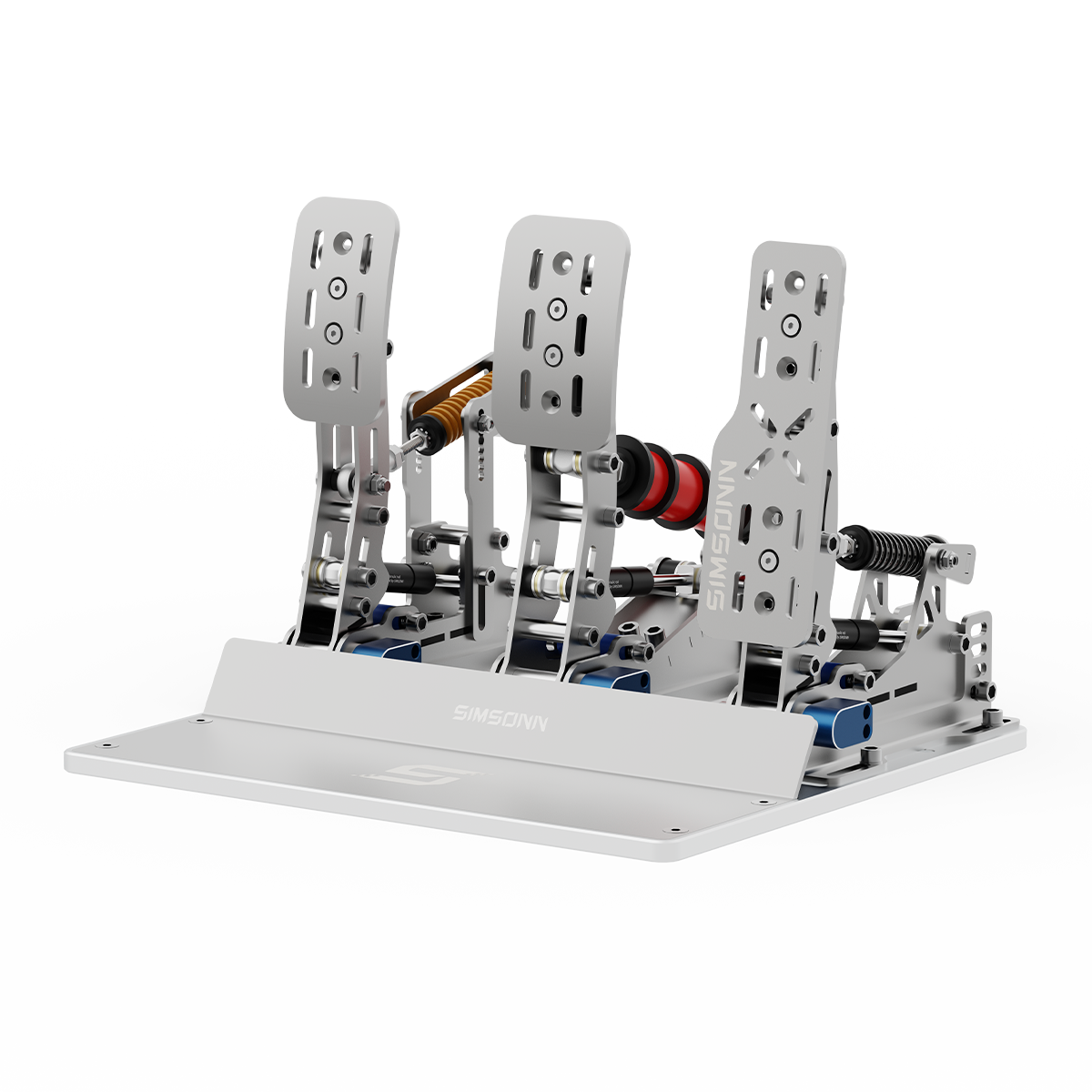

High-Strength Stainless Steel Construction:

Crafted from 3mm thick CNC precision laser-cut high-strength stainless steel, with the brake load-bearing part thickened to 6mm and the pedal panels thickened to 4mm, ensuring durability and rigidity.

Dual Bearing Design:

Adopts a dual-bearing system with flange bearings and plane bearings, ensuring precise and smooth pedal movements, providing a more realistic feel and feedback.

Ergonomic Design:

Features a curved pedal design with extended and widened throttle pedals and heel plates, enhancing driving comfort and reducing fatigue during long sessions.

Multi-Dimensional Adjustability:

Pedal Position: Can be adjusted forward, backward, left, and right.
Pedal Panel Height and Angle: Adjustable to suit individual preferences.
Travel Distance and Force Curves: Adjustable to provide almost infinite feel settings.

High-Precision Load Cell:

Clutch/Throttle: 20kg load cell.
Brake: 200kg load cell.
Provides true linear input measurement for throttle, clutch, and braking force, ensuring precise responses.

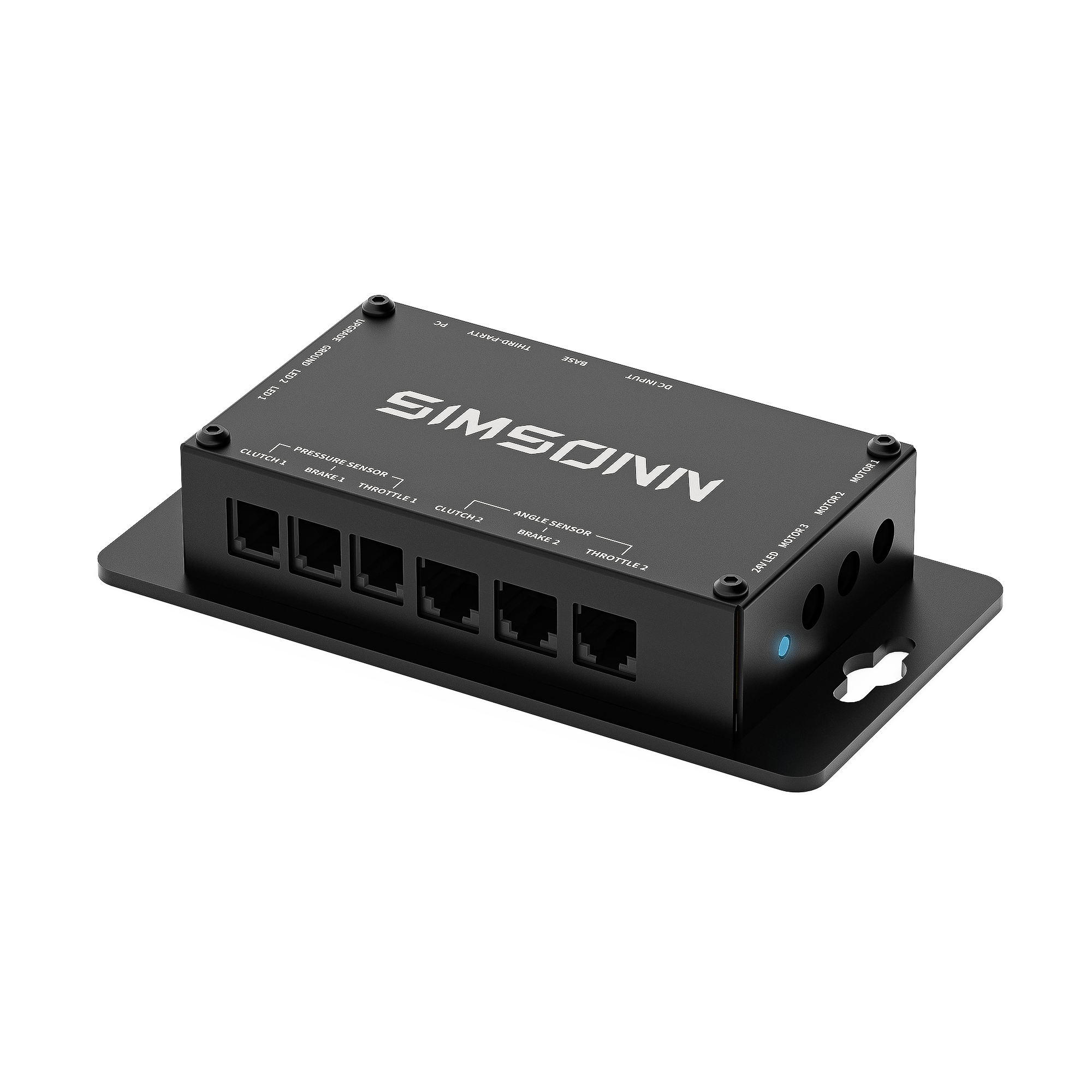

Powerful Processing Unit:

Built-in 32-bit dual-core processor and 16-bit independent ADC (Analog-to-Digital Converter) chip, housed in an aluminum casing for superior interference resistance.
Supports real-time mapping and precise output.
Three-channel simultaneous data sampling for throttle, brake, and clutch, enhancing response speed and seamless operation.
Improved signal stability and accuracy, resisting interference from other bases or 4-axis motion seats for a smoother driving experience.

RGB Lighting:

Equipped with customizable RGB light strips, offering various lighting modes to enhance the visual experience.

SIMSONN Manager Software Support:

Allows users to configure (non-linear) pedal output curves, set pedal dead zones, and adjust brake curves.
Settings can be saved as profiles and applied across any simulation software without additional adjustments, remapping, or recalibration.

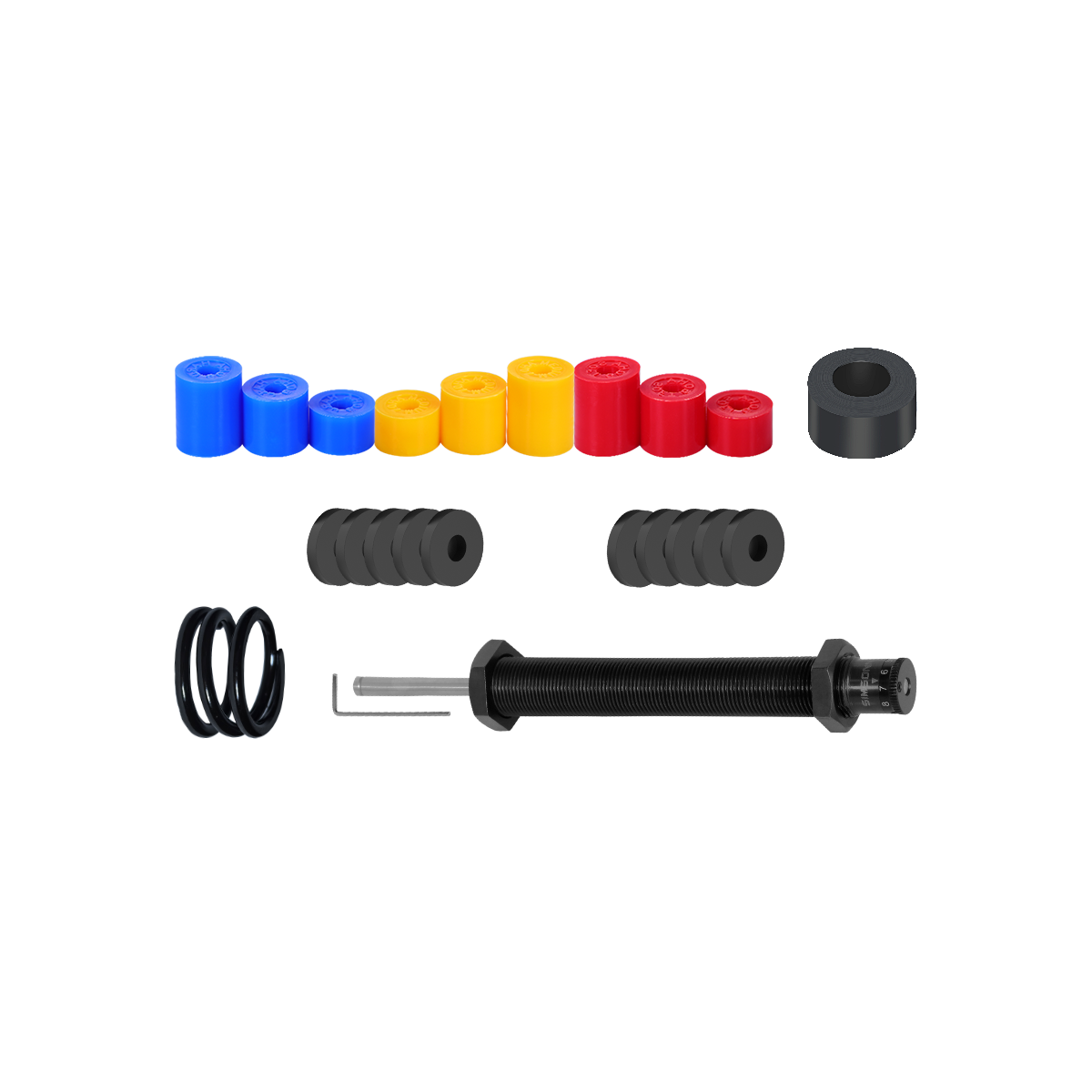

Adjustable Resistance Hydraulic Rod and Stronger Damping:

Brake Pedal: Comes standard with an adjustable hydraulic resistance rod with 1-8 levels of adjustment.
Other Pedals: Optional hydraulic rods available to enhance the realism of brake operations.
Brake Damping: Utilizes 60HA red rubber damping, with additional 80HA and 90HA options available for replacement, enhancing the real feel of the pedals.

Design Optimization:

All key pivot points are equipped with mounting ball bearings to eliminate play and prevent wobble, ensuring the pedals maintain functionality even after one million duty cycles.

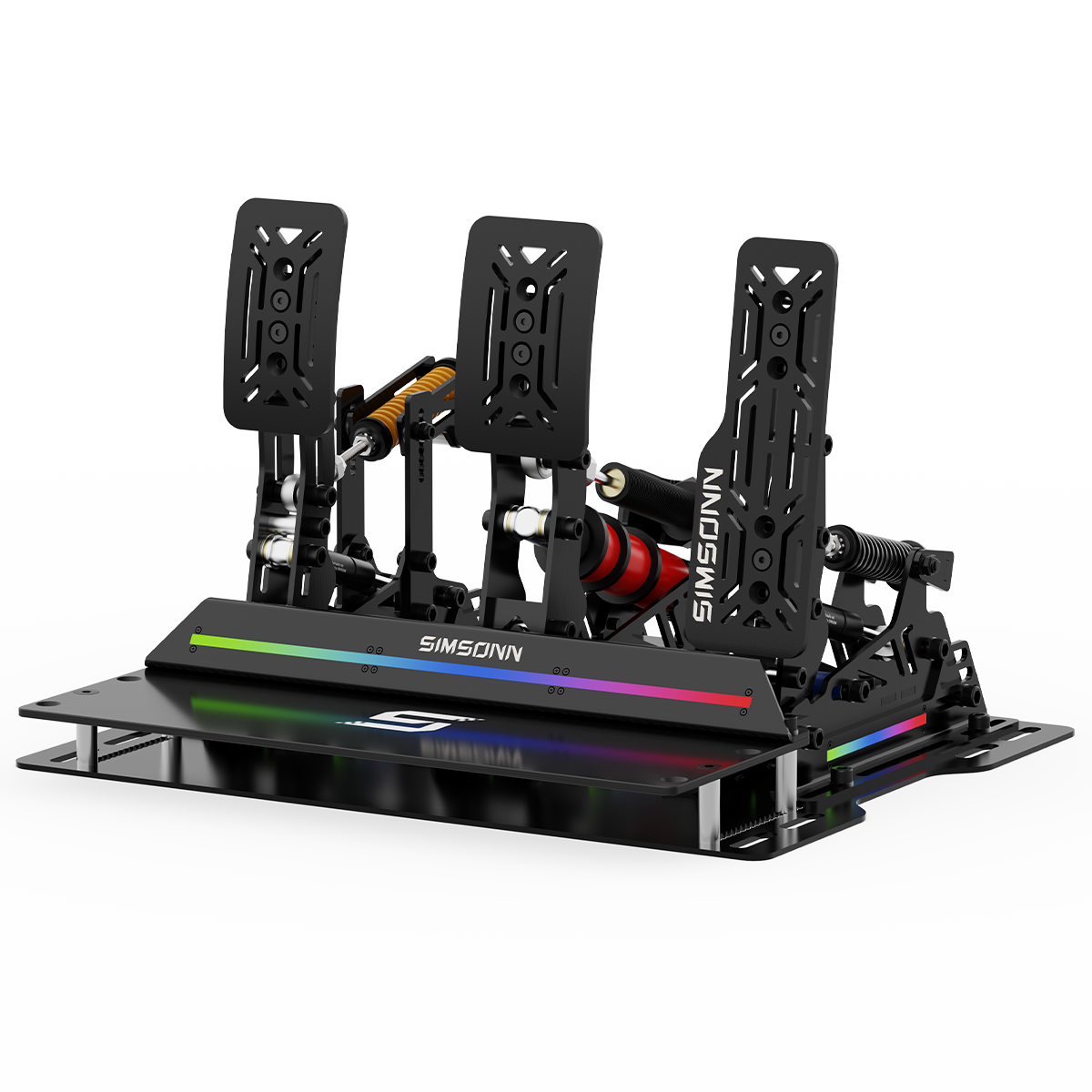

These innovations and features give the Simsonn Pro X pedals significant competitive advantages in the sim racing pedal market, making them ideal for users seeking high precision, durability, and highly customizable experiences.

SIMSONN Pro X

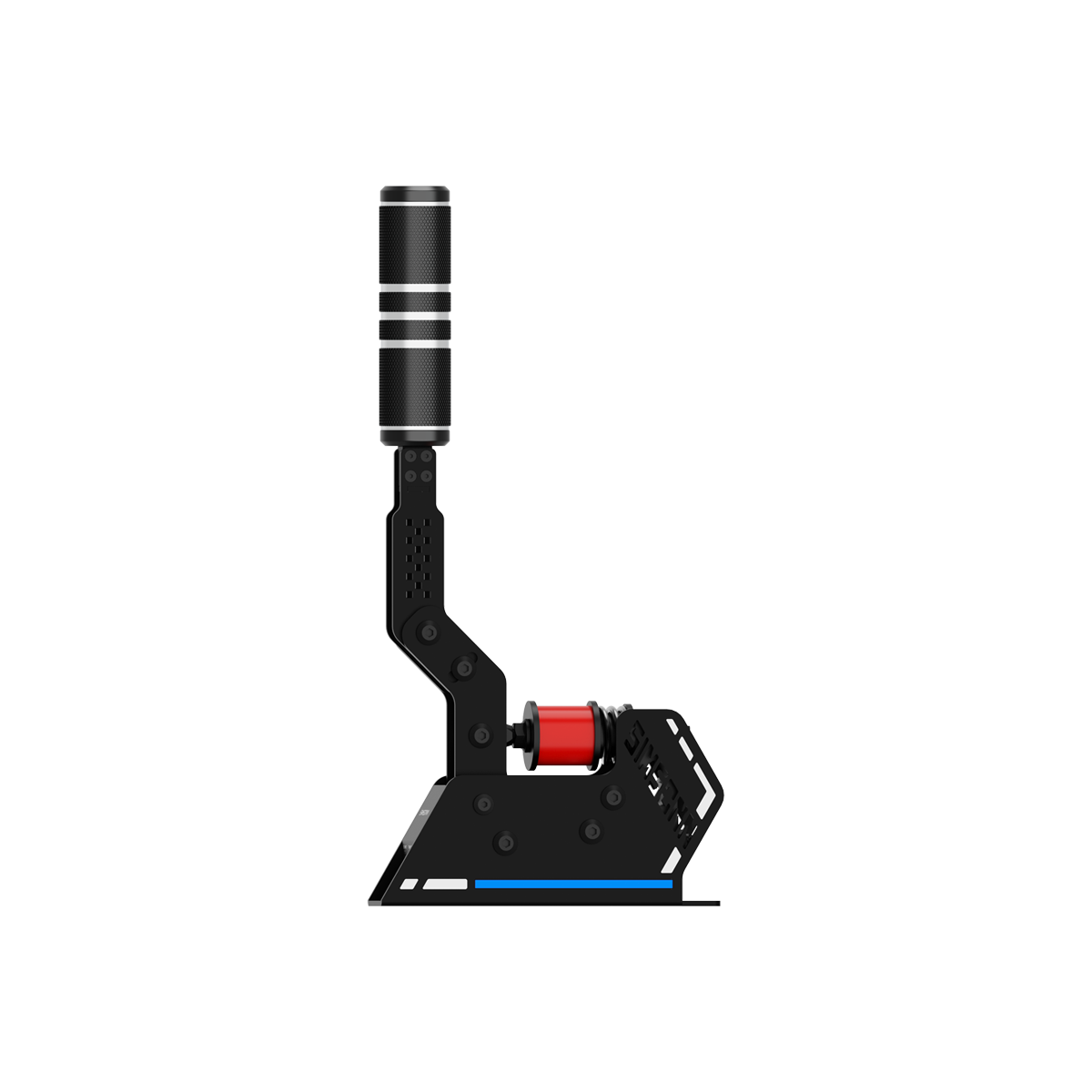

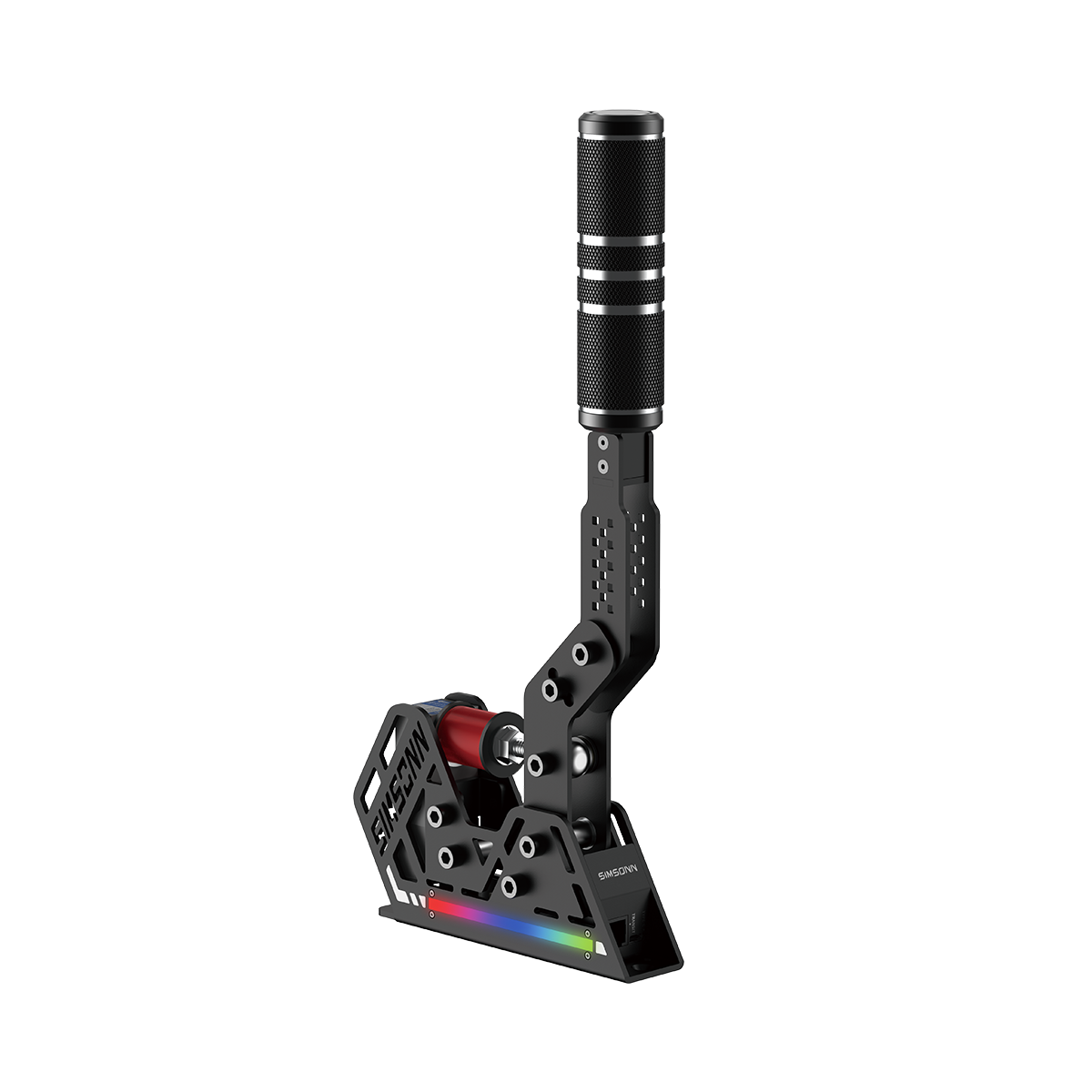

SIMSONN HB Pro

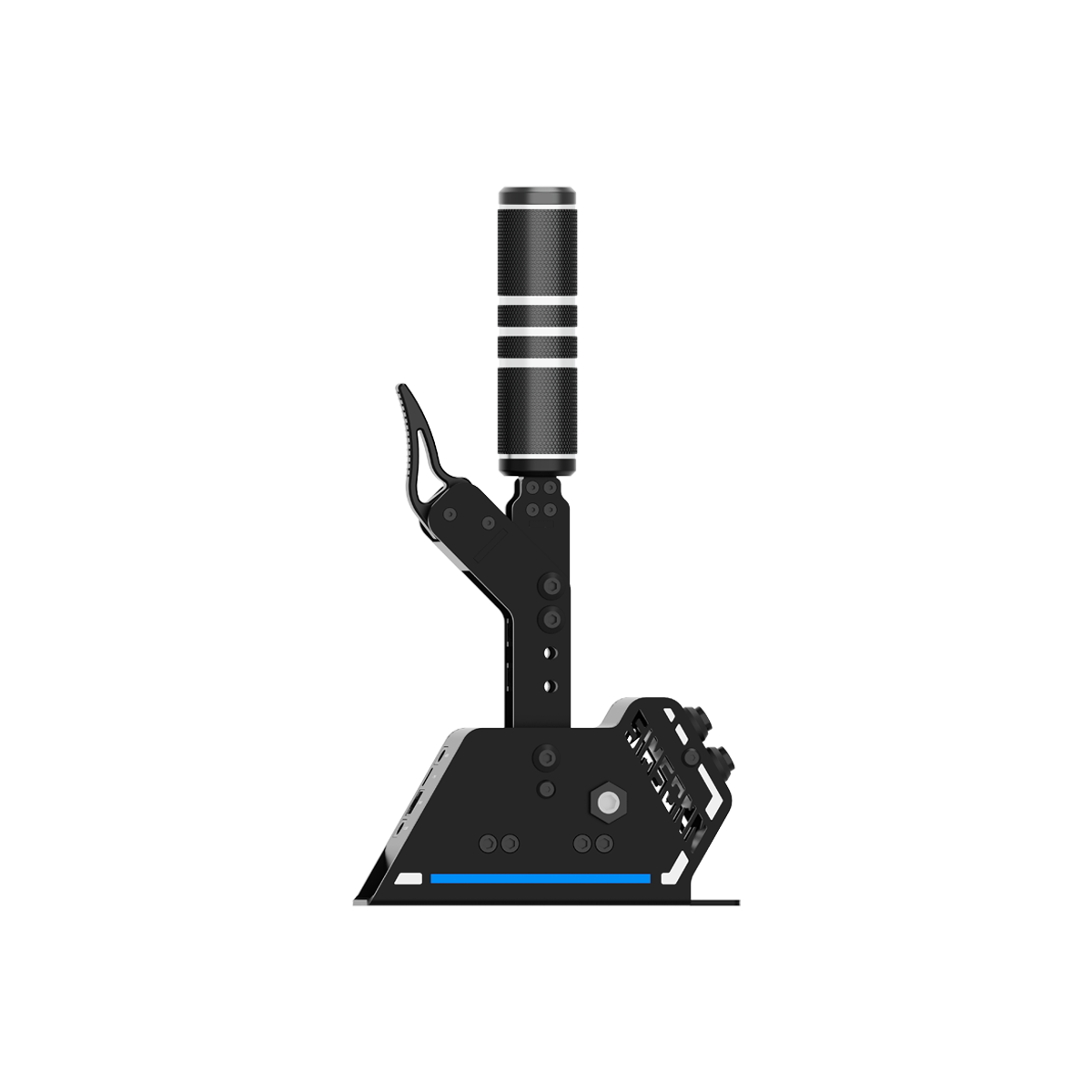

SIMSONN SQ Pro
