Pressure + Angle Sensor Fusion. More Precision. More Control.
Comprehensive Craftsmanship Upgrade
Every component undergoes multiple precision processes, delivering a refined surface finish with smooth edges
and no sharp corners.
Black Finish
Laser Cutting
Magnetic Polishing
Glass Bead Blasting
Electrophoresis
Powder Coating
Silver Finish
Laser Cutting
Magnetic Polishing
Glass Bead Blasting
Precision and Robust Construction
4 mm
Pedal Face
6 mm
Load Cell Mounting Plate
The pedal body is constructed entirely from 3mm thick stainless steel, improving bending rigidity by approximately 23% compared with the first-generation pedal. Key areas have also been reinforced with increased thickness for enhanced durability.

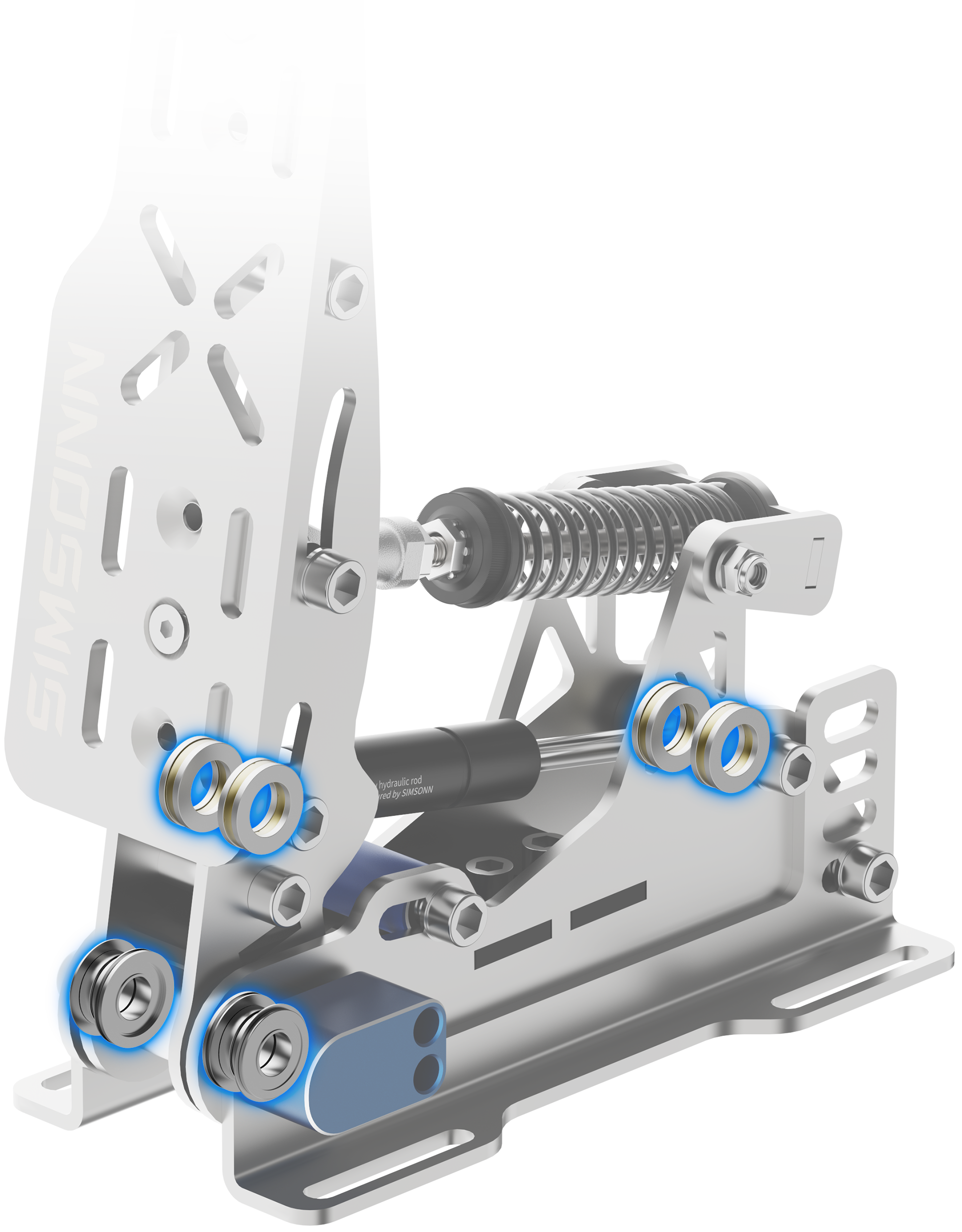

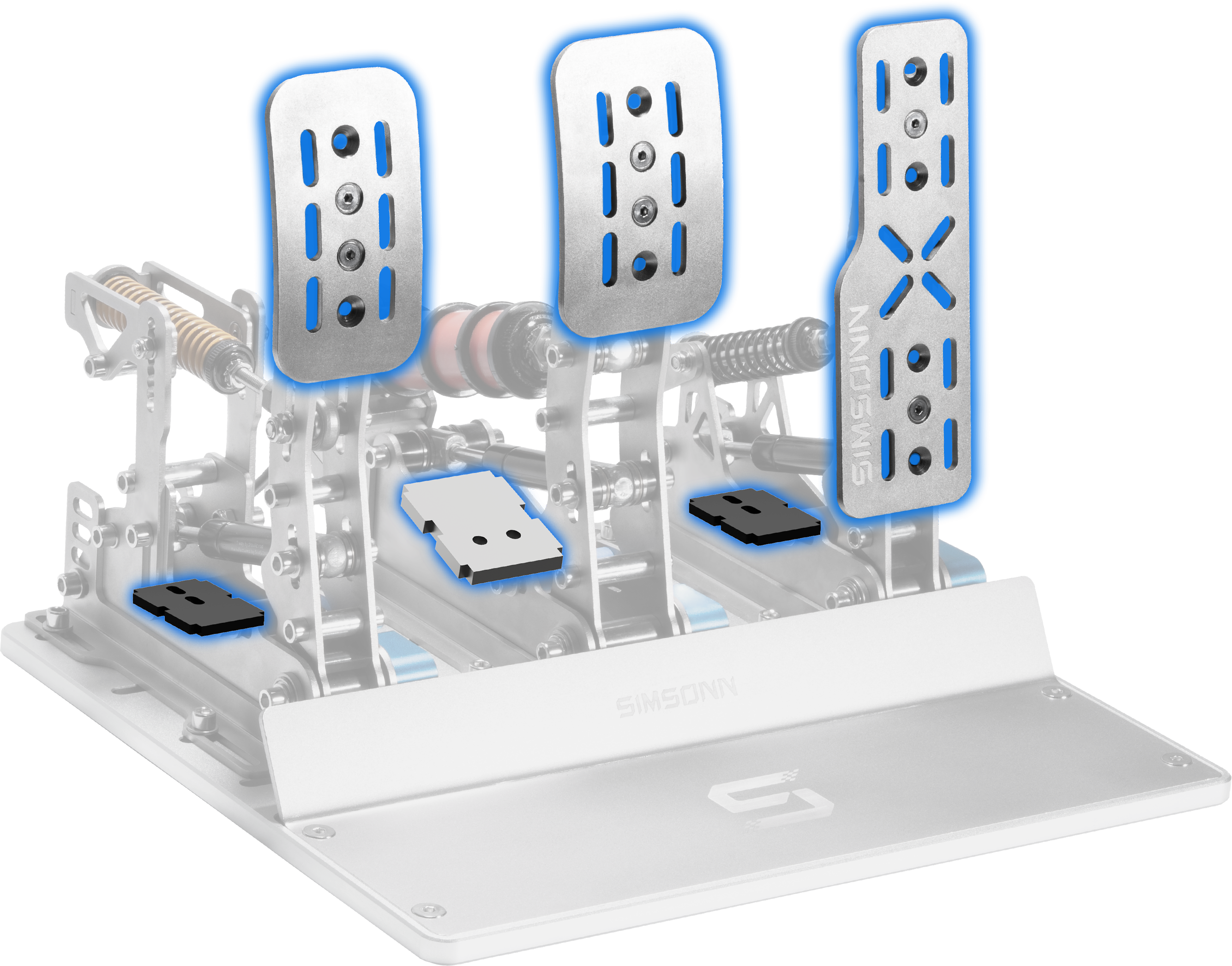

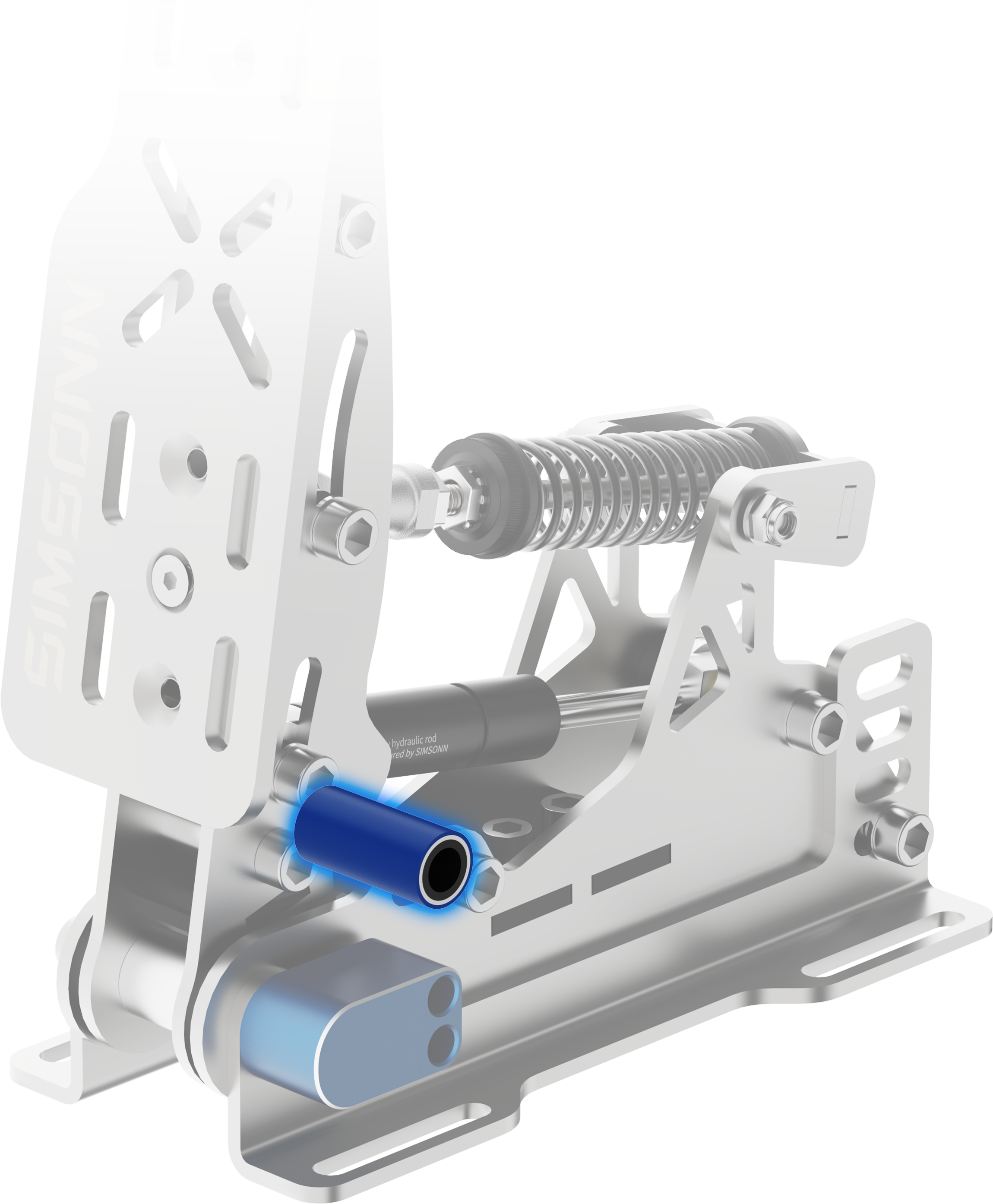

All moving components of the pedals are equipped with high-precision bearings, providing a solid, play-free structure that enhances pedal smoothness, flexibility, and stability during operation.
Flat Ball BearingFlat Flange Bearing
LESS HARSH. LESS NOISE. — Shock-absorbing sleeves at the pedal stops significantly soften the impact and reduce noise at full travel.

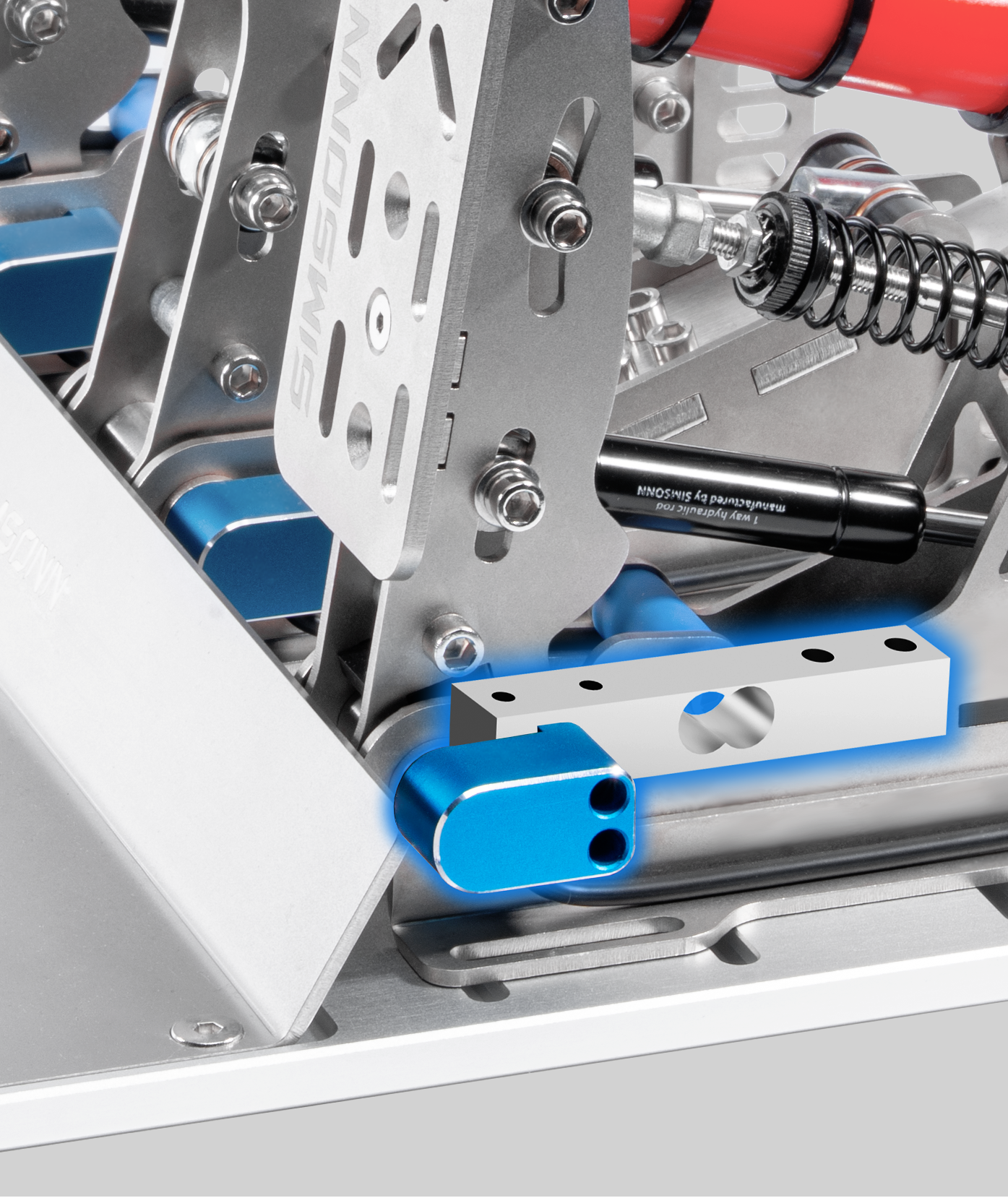

Dual-Sensor Fusion Algorithm
Plus X V2 combines high-precision
Load Cell with 15-bit
automotive-grade high-resolution
magnetic angle sensors to form
a 3x2 six-channel sensor matrix,
enabling precise force and
angle sensing with coordinated
data acquisition.
Requires SIMSONN Manager V 2.2.0 or later.
Powered by our proprietary sensor-fusion algorithm, the pedalcombines force sensing and angle sensing for a balancedblend of signal consistency and responsiveness.
Adjust the sensor-fusion ratio in SIMSONN Manager to fine-tune pedal response to your preference.

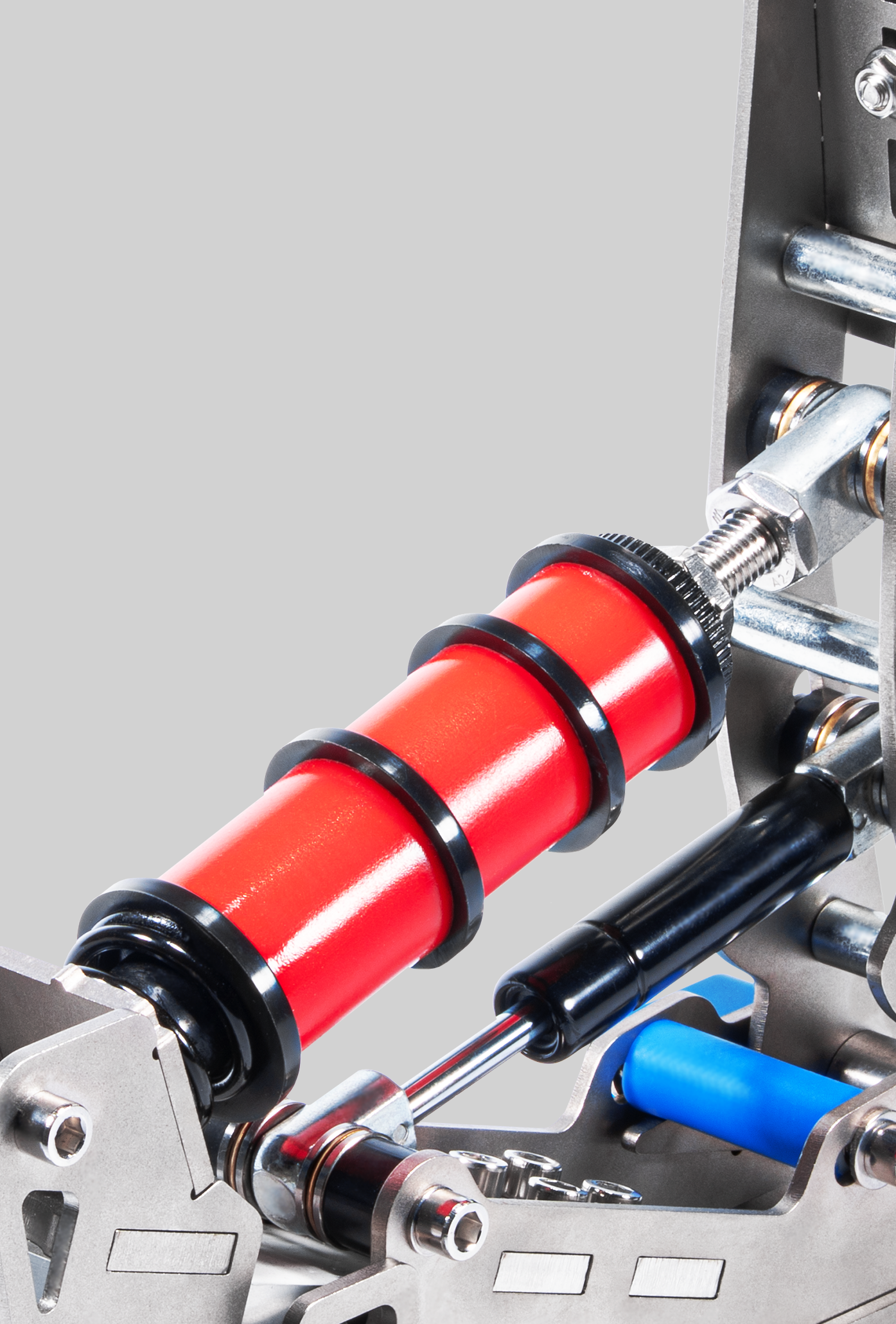

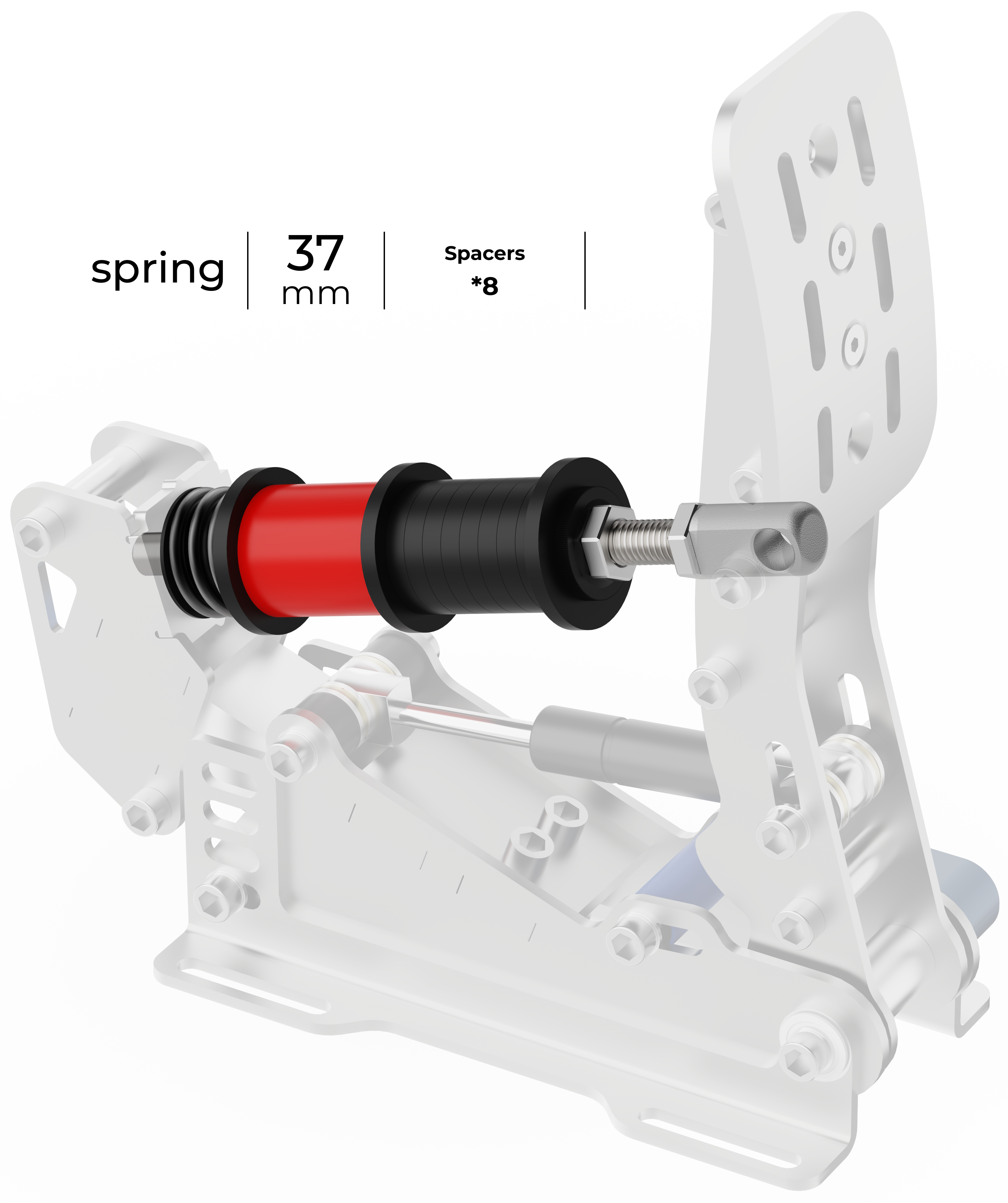

Dual-Stage Braking Feel
The Brake Pedal features a dual-stage design combining custom Rubber Dampers and a coil spring,
accurately recreating the braking feel of a real vehicle.
Stage 1: Compression of the coil spring simulates the gap between the brake pads and brake disc.
Stage 2: Compression of the Rubber Damper simulates the primary braking force applied to the brake disc.

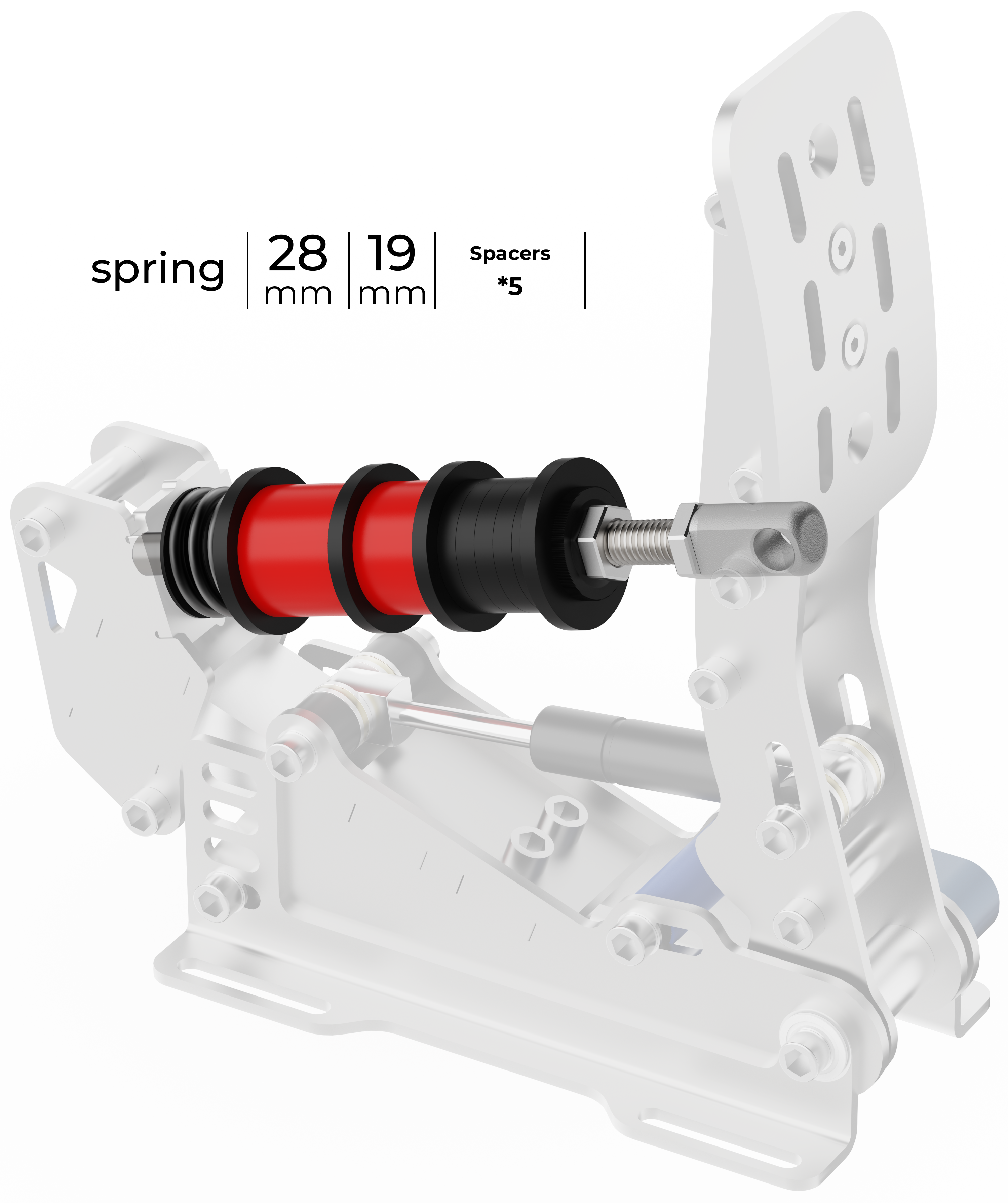

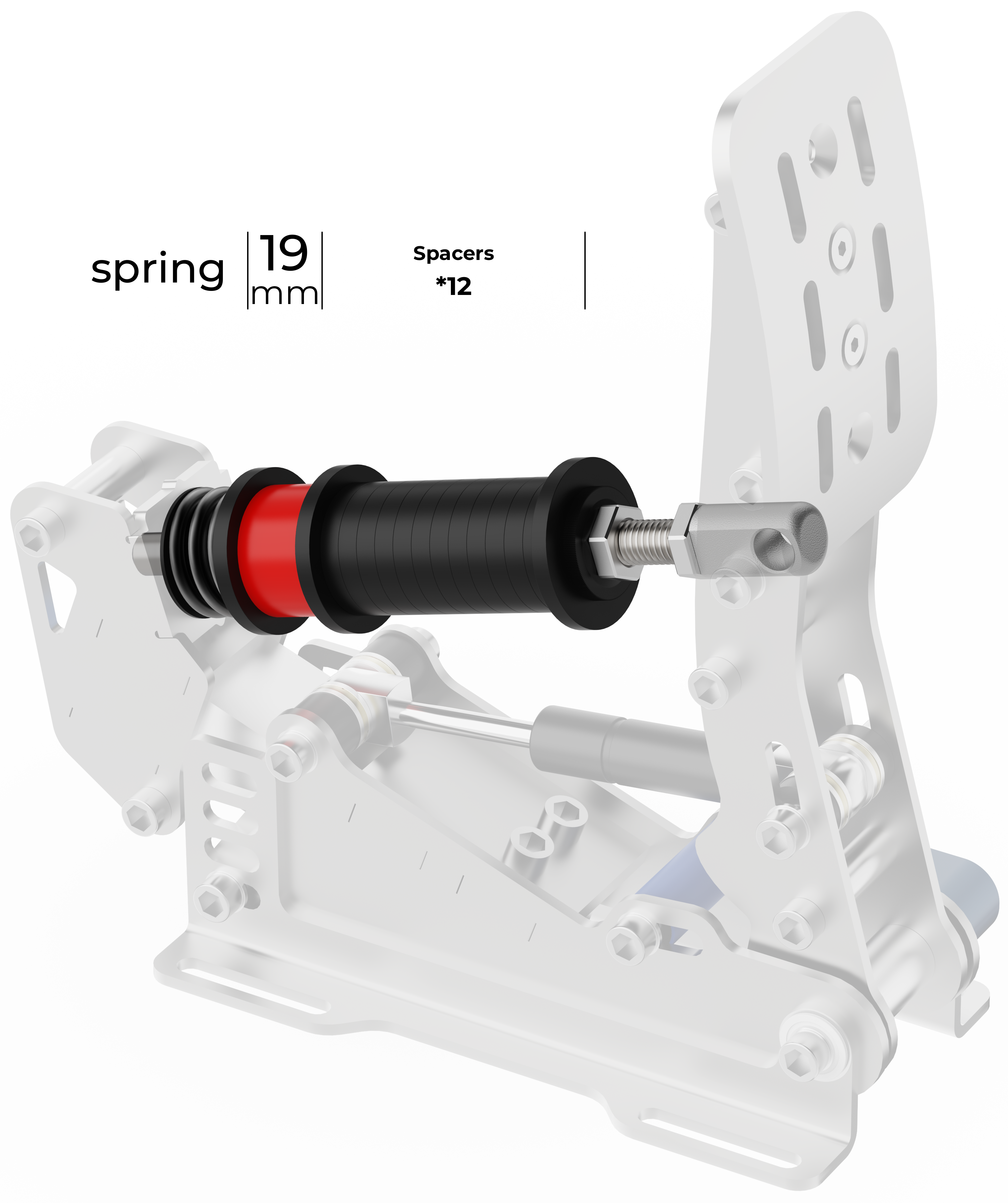

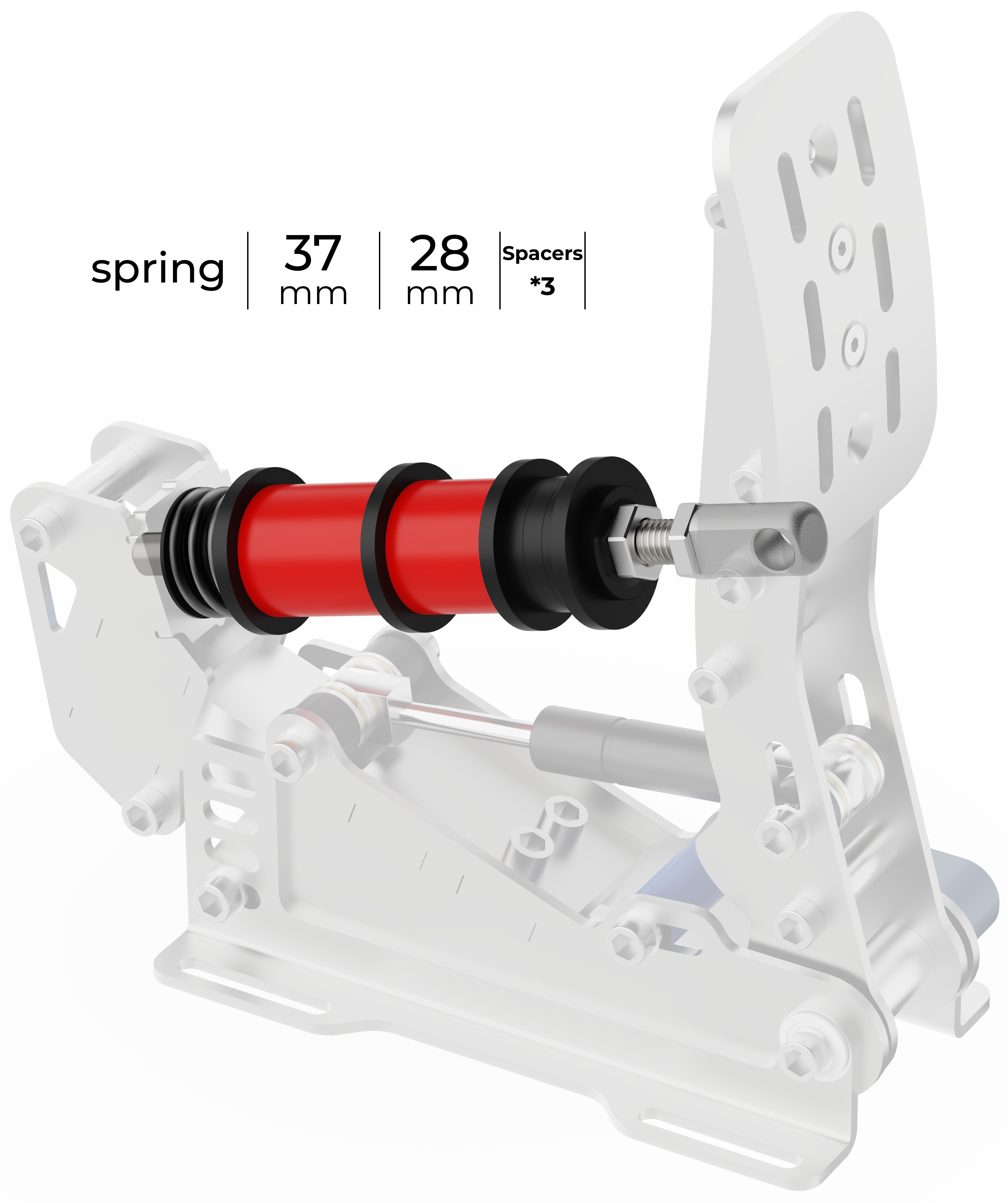

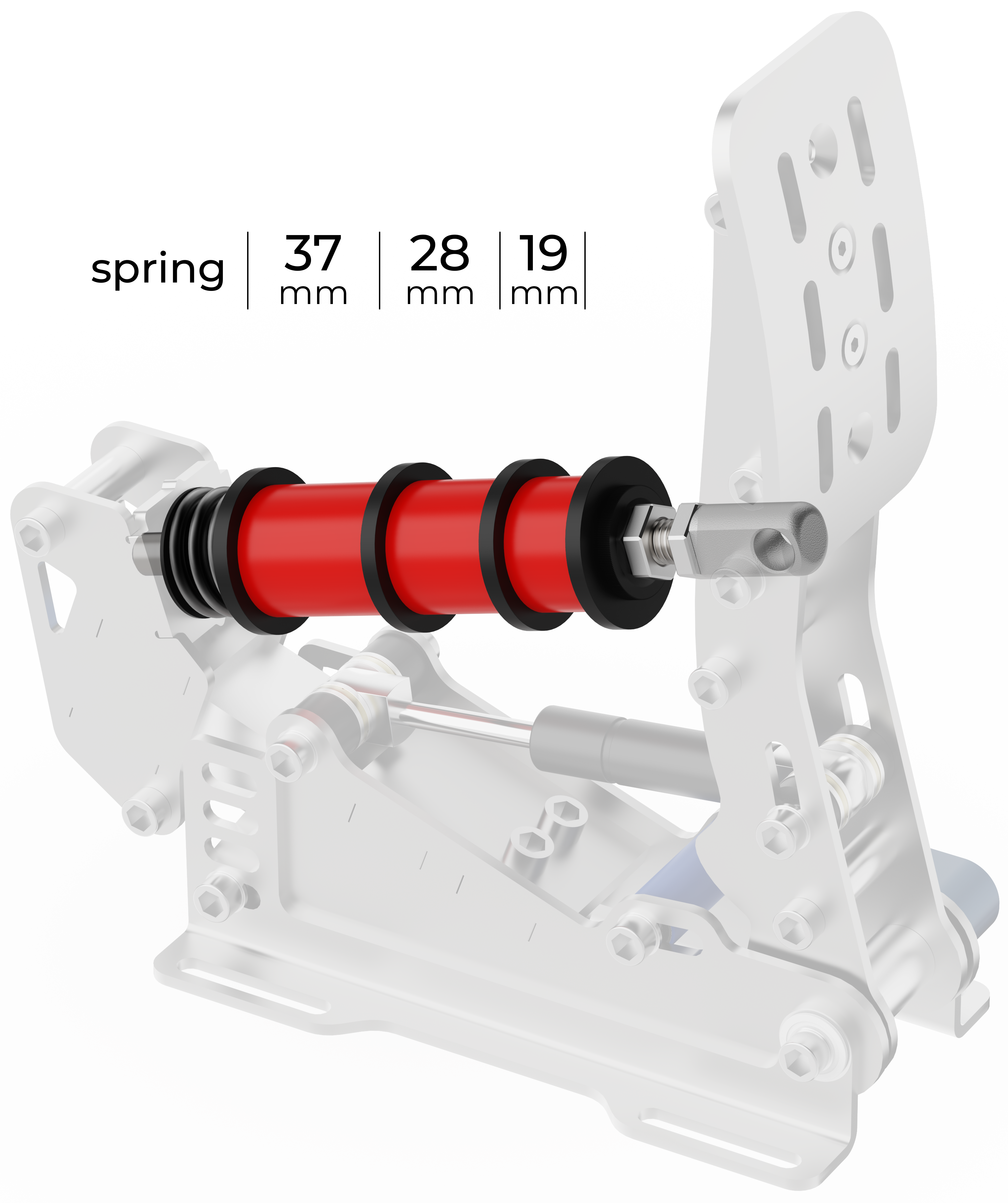

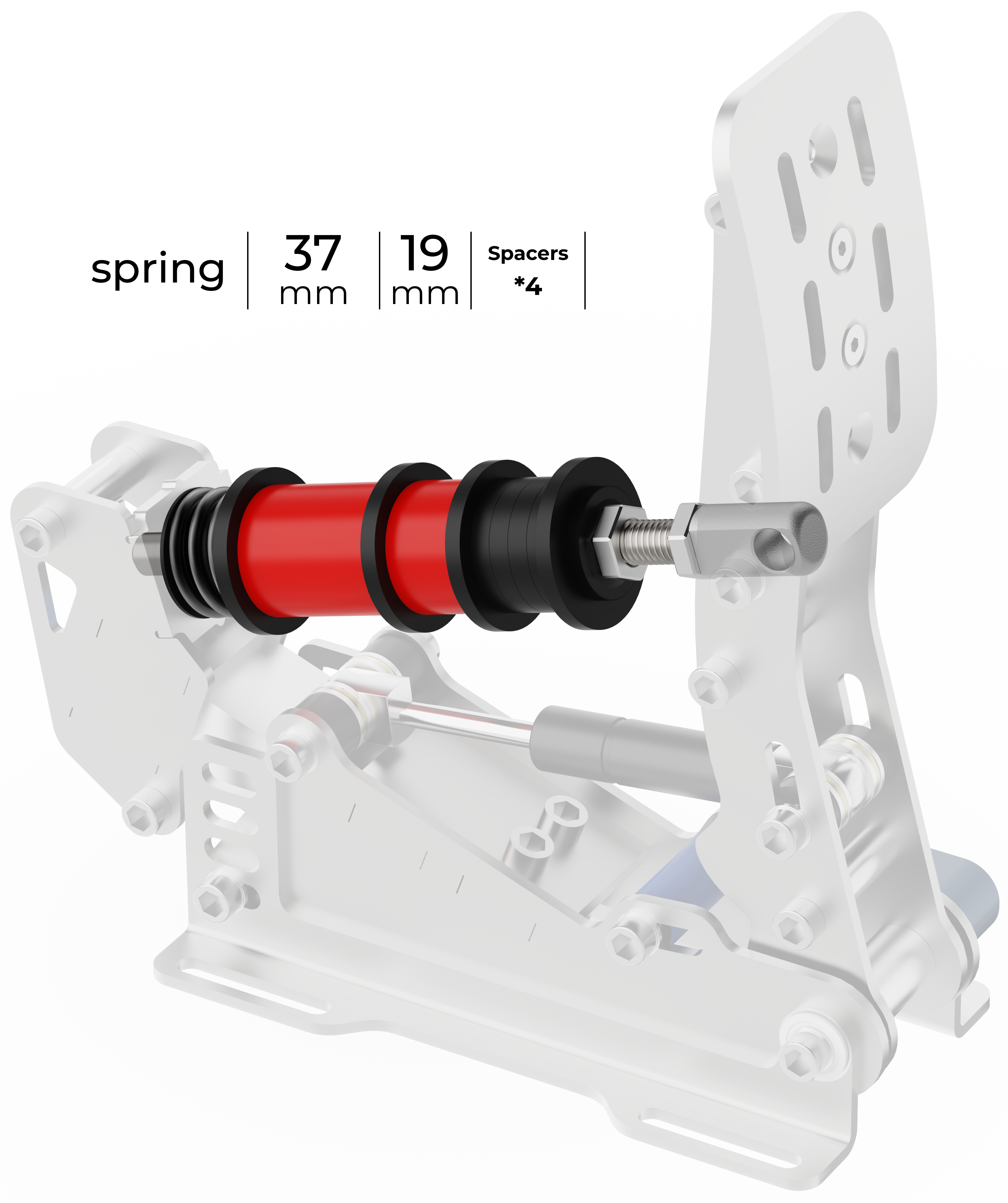

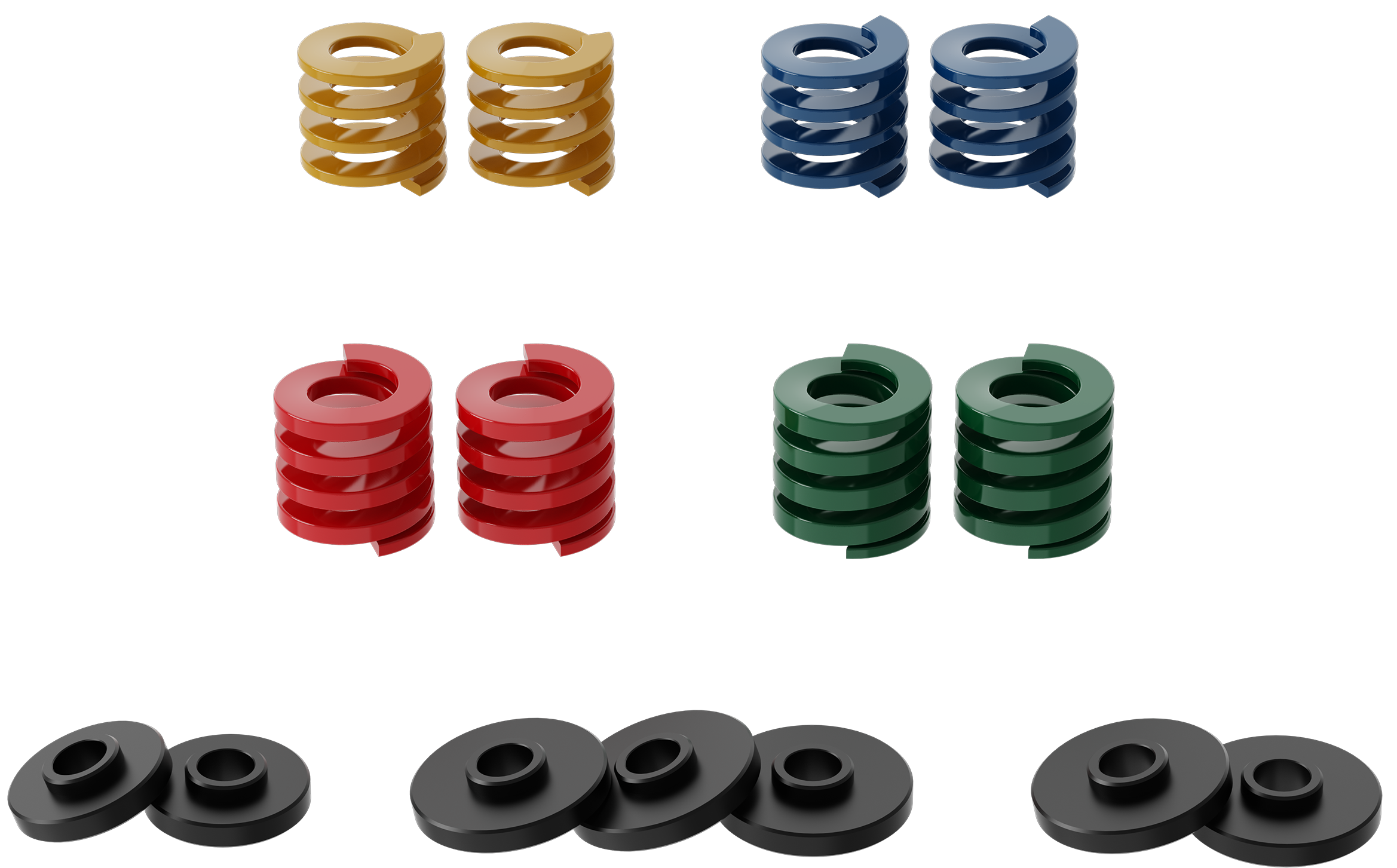

Using the Red (SOFT) Rubber Damper as an example,possible combinations of the Rubber Damper andSpring are as follows:

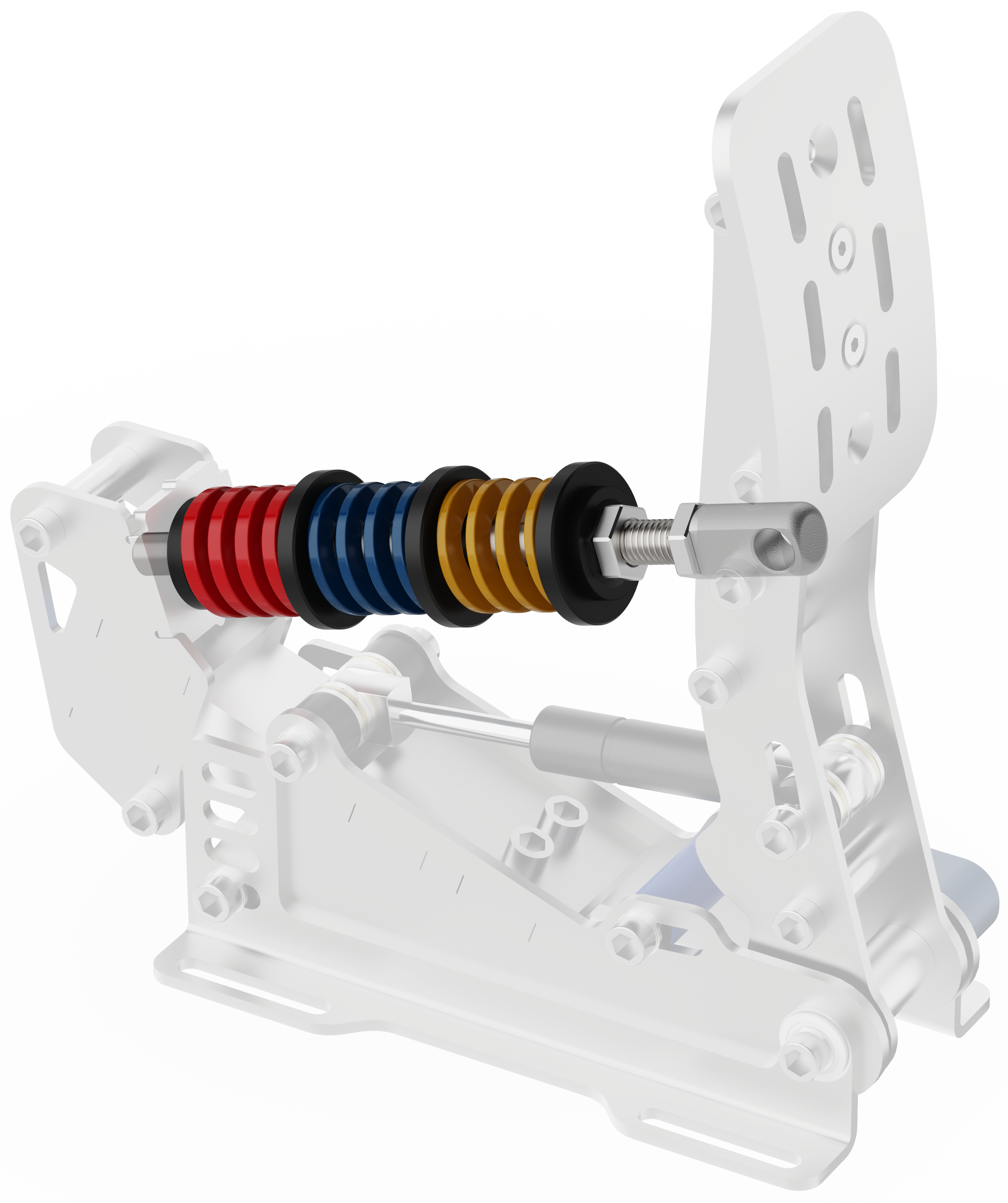

The Brake Pedal supports an optional Competition Spring Kit, designed to simulate the firm braking feel of top-tier race cars such as F1 and F2, while achieving an extremely short peak braking force response time.

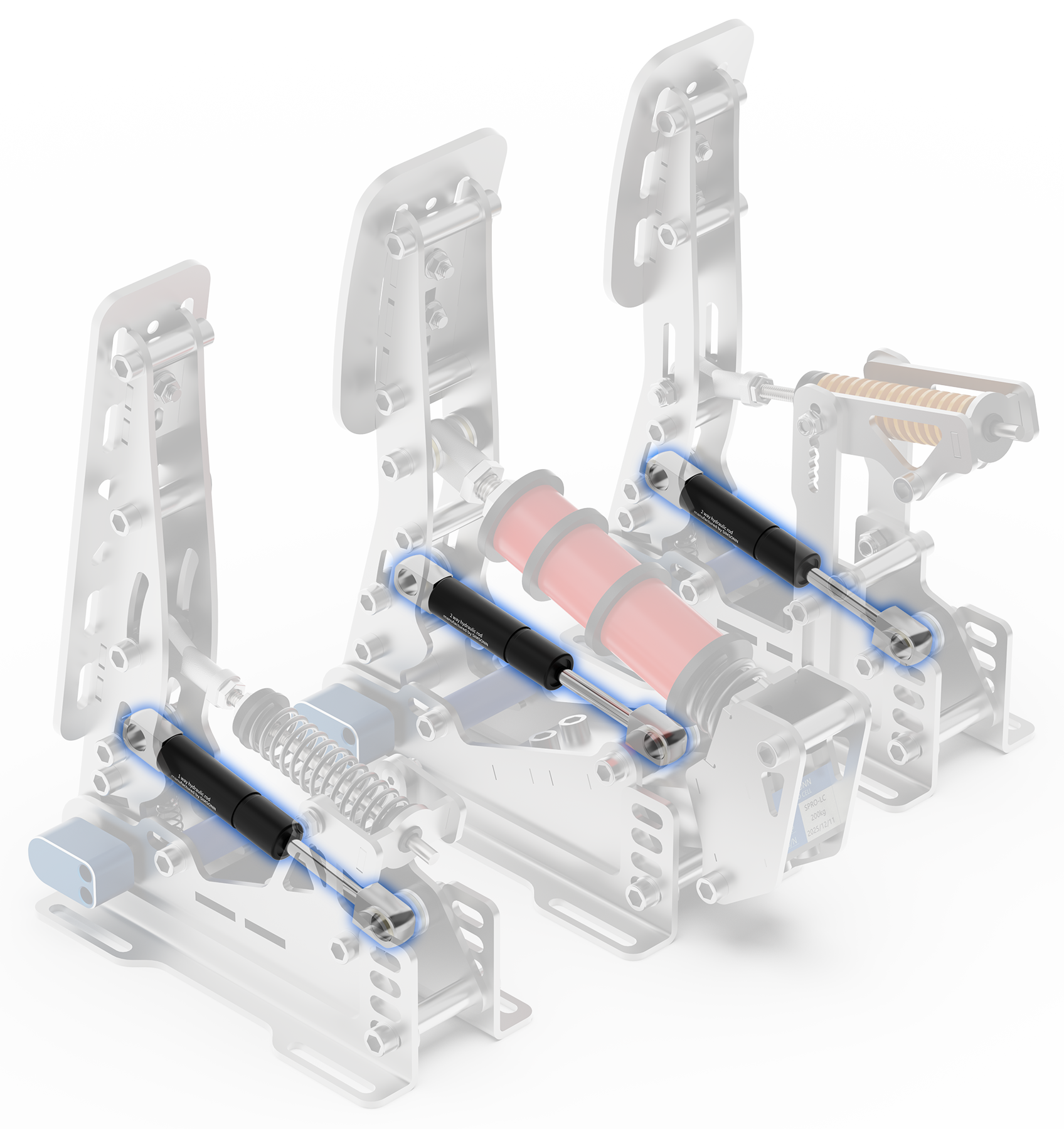

Standard Hydraulic Damping System
The pedals come pre-installed with hydraulic damping rods, significantly improving pedal smoothness and overall operating feel.
Throttle Pedal: One-way Hydraulic Rod
Brake and Clutch Pedals: Two-way Hydraulic Rod
Multl-Dimenslonal Custom Adjustment
PLUS X V2 / OPTIONAL ACCESSORIES
Extensive Expansion Options.
More feedback. A steadier setup. Explore accessories that bring more to your Plus X V2.
THE VAM SERIES
01 / ENHANCED FEEDBACK
Feel more. Stay connected.

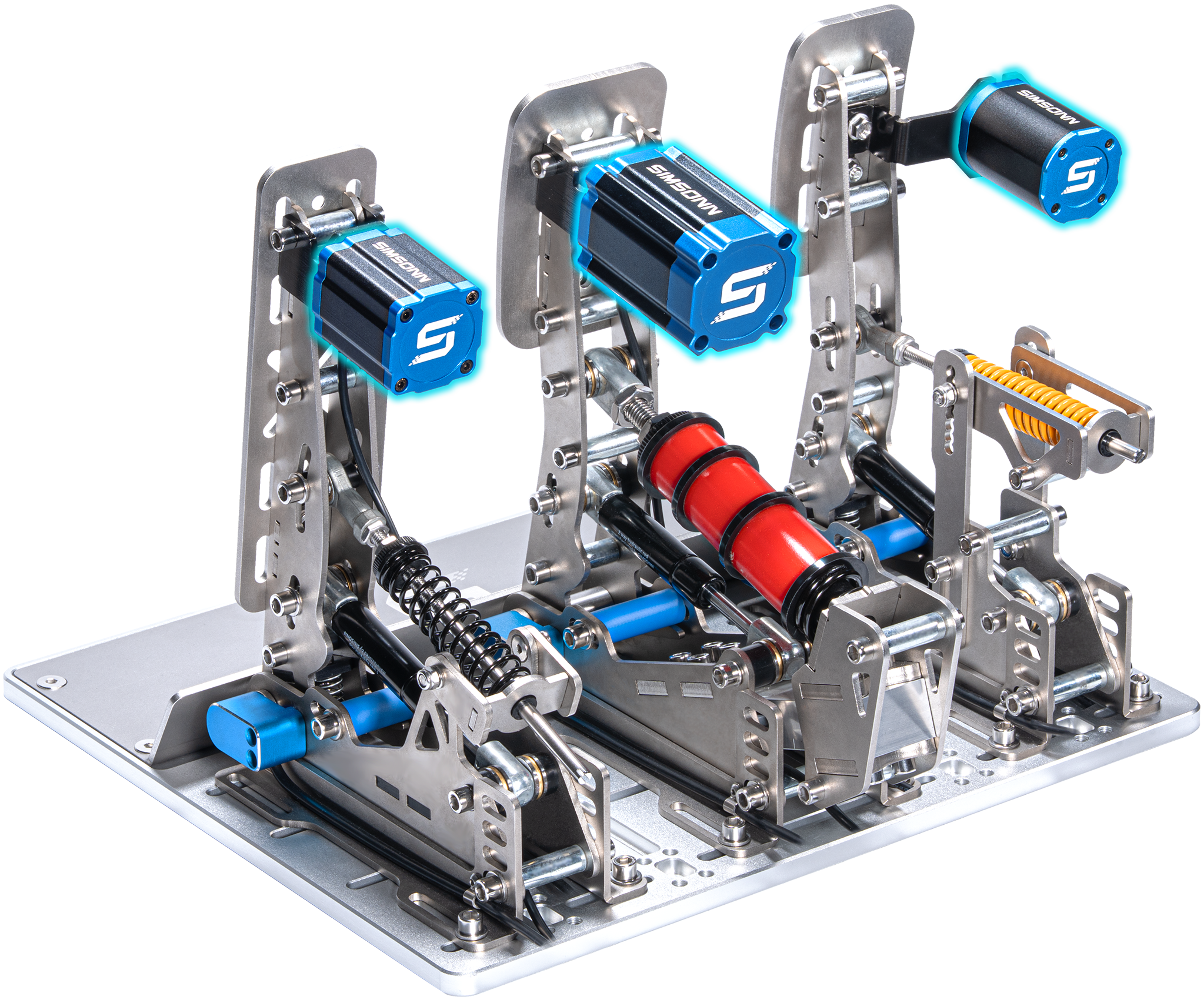

Add optional VAM Series vibration modules for enhanced feedback through your pedals.
VAM NeoThrottle
Composed of a CNC aluminum alloy housing and a linear vibrating motor.offers a higher adjustable frequency and
more delicate vibration feedback.
(More suitable for throttle pedal)
VAM ProBrake
Composed of a CNC aluminum alloy housing and a linear vibrating motor.It provides stronger thrust and a more
direct vibration experience.
(More suitable for brake pedal)
VAM2Clutch
It features a CNC-machined aluminum alloy housing with a built-in rotary vibration motor.
Compared to the VAM, it offers quieter operation and superior heat dissipation.
(More suitable for clutch pedal)
02 / ADDED STABILITY
A more stable foundation.
Two ways to support your setup.

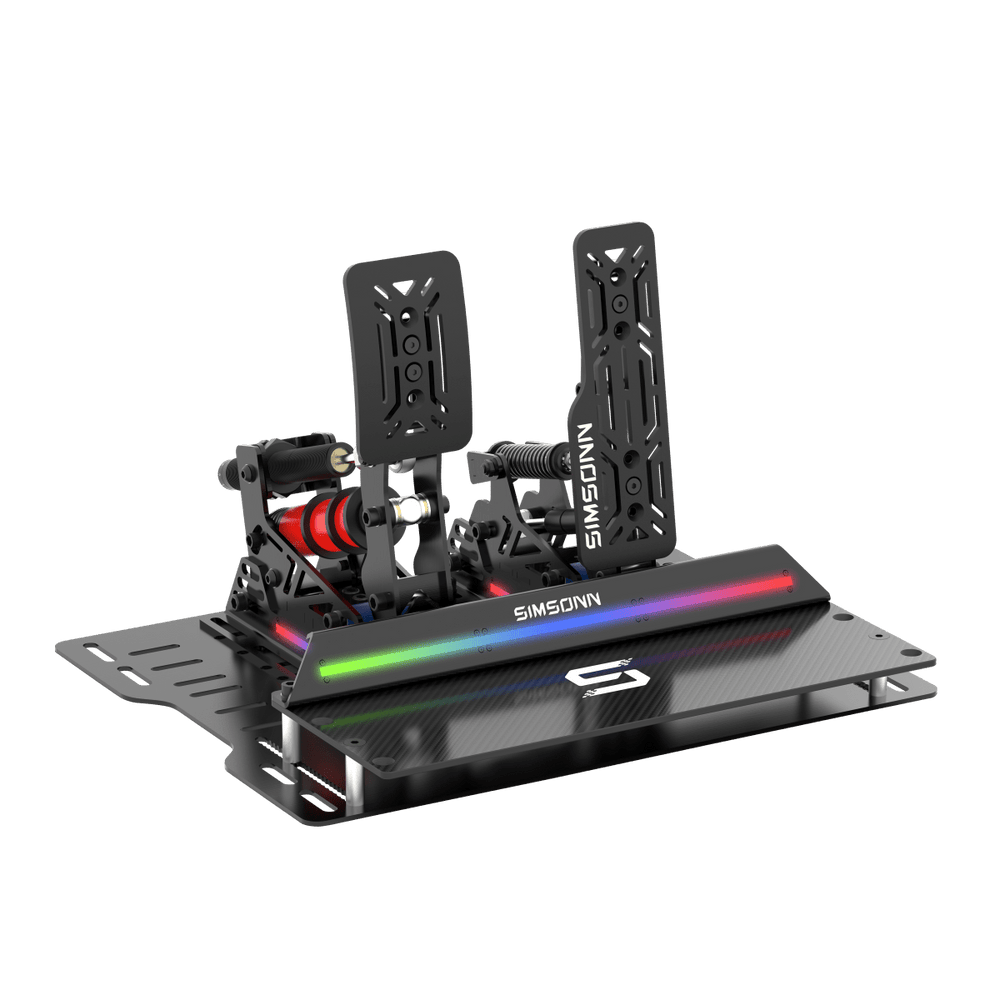

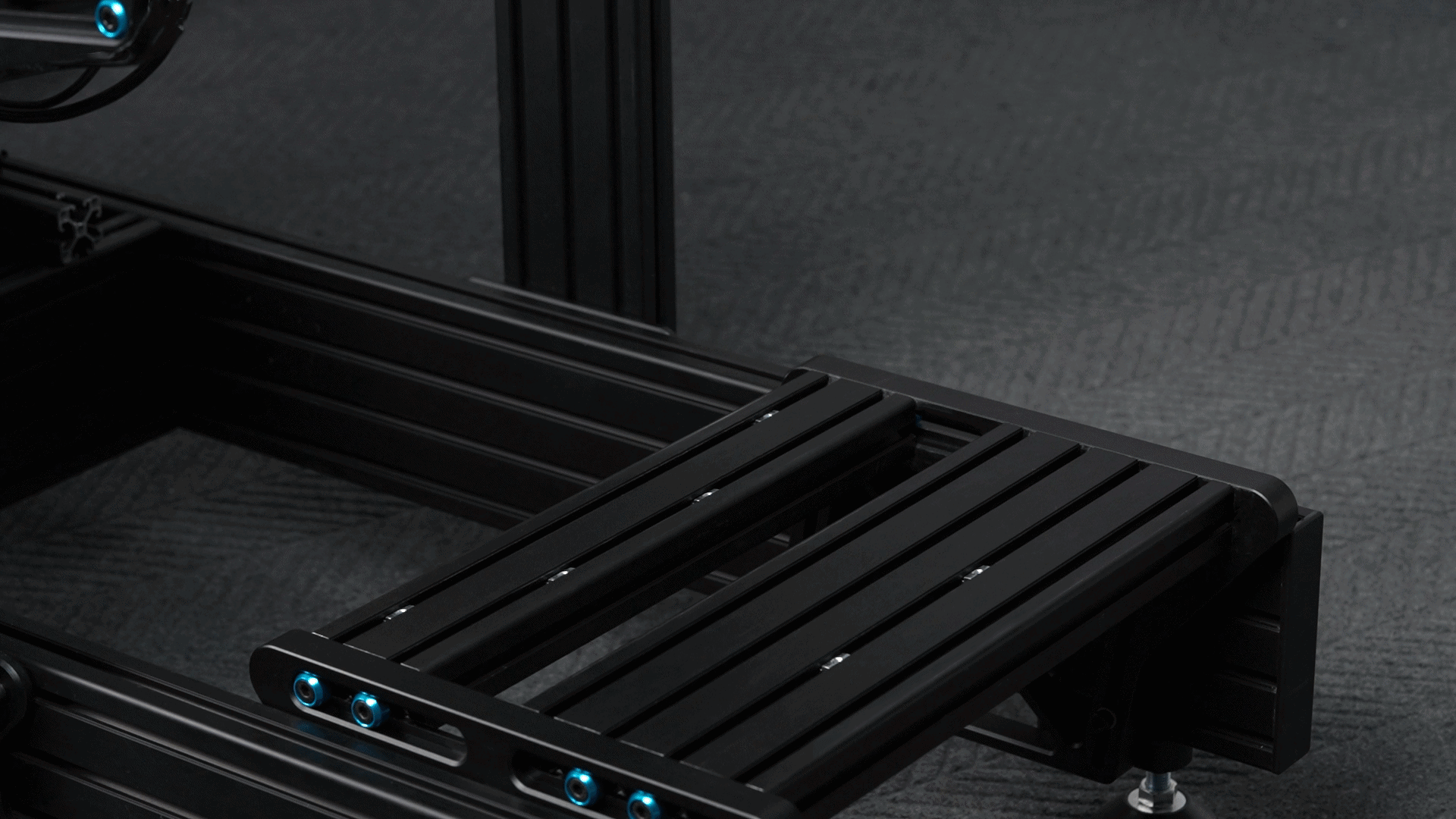

Base Plate Kit
A SOLID FOUNDATION
Aluminum Alloy Base Plate
Built from 10mm aluminum alloy, the CNC-machined base plate provides rigid support for your pedals, preventing flex under heavy braking. The adjustable heel plate offers flexible positioning to suit your preferred driving posture.

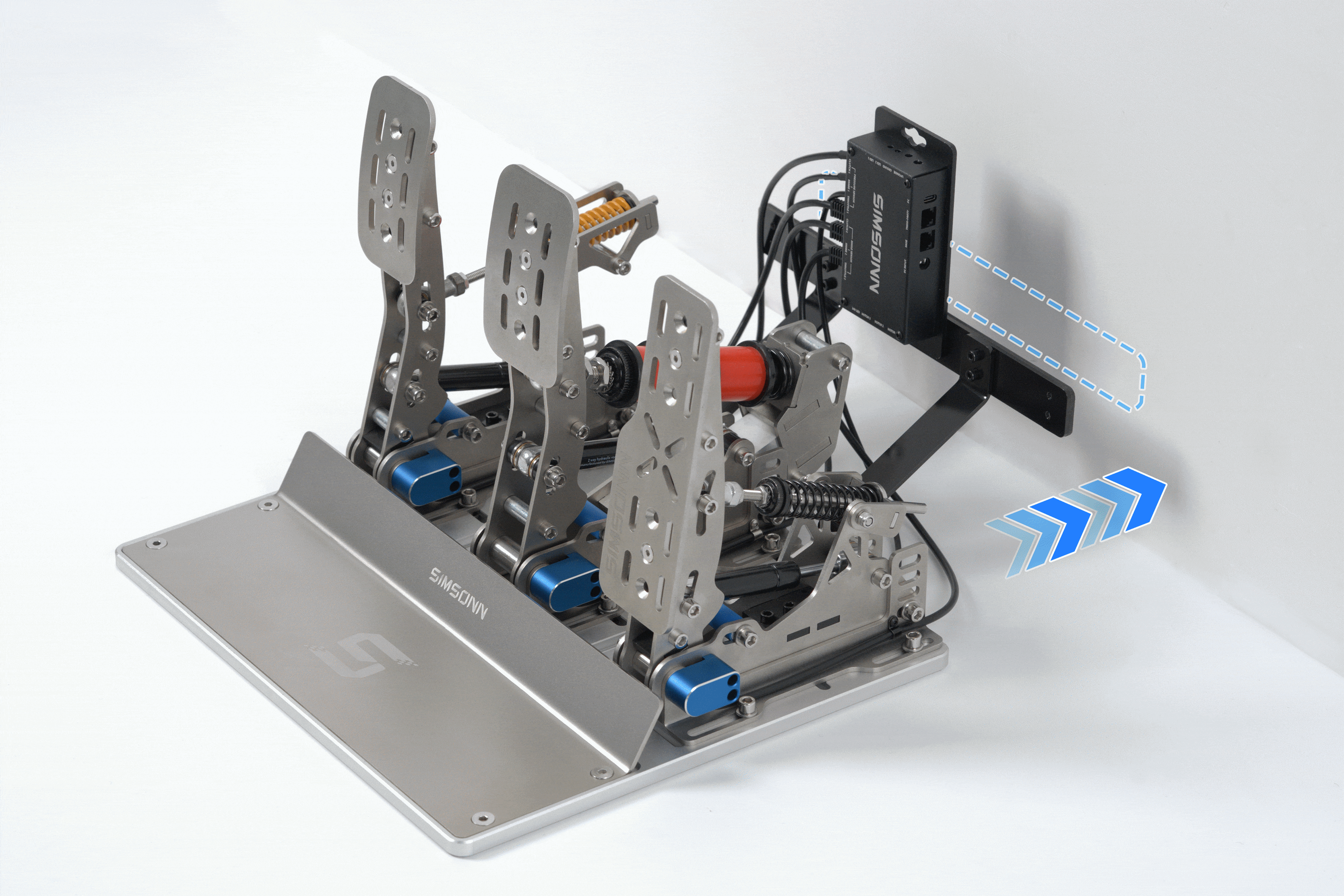

Wall Support Kit
NO RIG? NO PROBLEM.
Wall Support Kit
Race comfortably from your desk without a dedicated sim racing cockpit. The optional Wall Support Kit braces your pedals against a wall to prevent sliding during hard braking.
Pair it with specially designed anti-slip pads for different floor surfaces:
Carpet: Spiked ABS pads for a secure grip.
Wood Floors: Rubber pads for stability and floor protection.

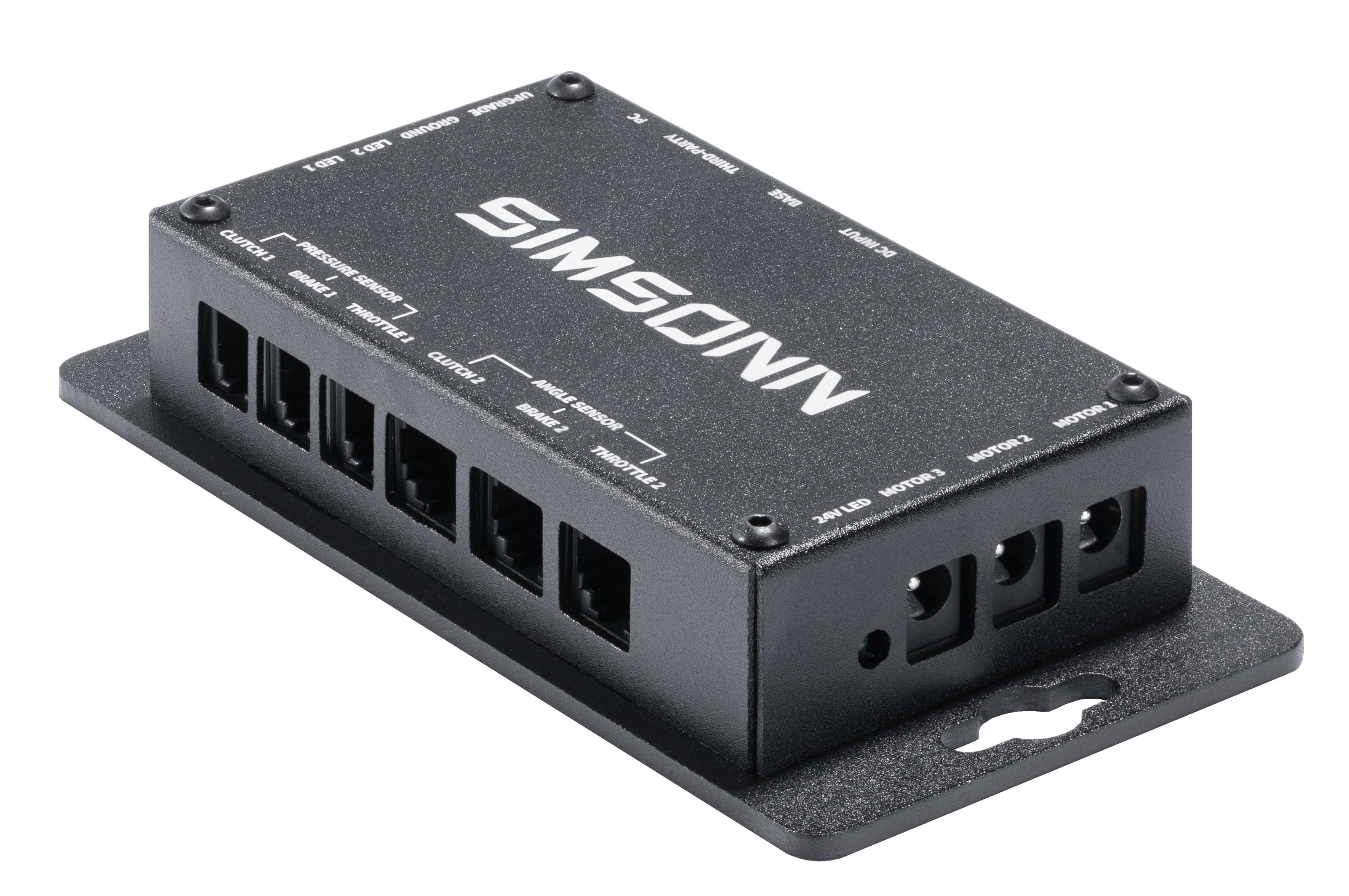

Next-Generation Enhanced Control Box
Fully upgraded hardware and architecture deliver a smoother, more seamless driving experience.
Added multiple interfaces support third-party wheelbases and other devices, unlocking more possibilities.
Pressure Sensor Interfaces ×3 (RJ11-4P4C)
Angle Sensor Interfaces ×3 (RJ12-6P6C)
Wheelbase Interface ×1 (RJ12-6P6C)
Third-Party Device Interface ×1 (RJ12-6P6C)
Vibration Assistance Module Interfaces ×3
Type-C Interface ×1
Upgrade Button ×1
Ground Terminal ×1
Vibration Assistance Module Power Interface ×1
Vibration Assistance Module Power Indicator ×1
Chip Status Indicator Lights ×2
Closed Metal Housing with Enhanced EMI Protection
120MHz dual-processor chip
Supports VAM Series Vibration Assistance Modules

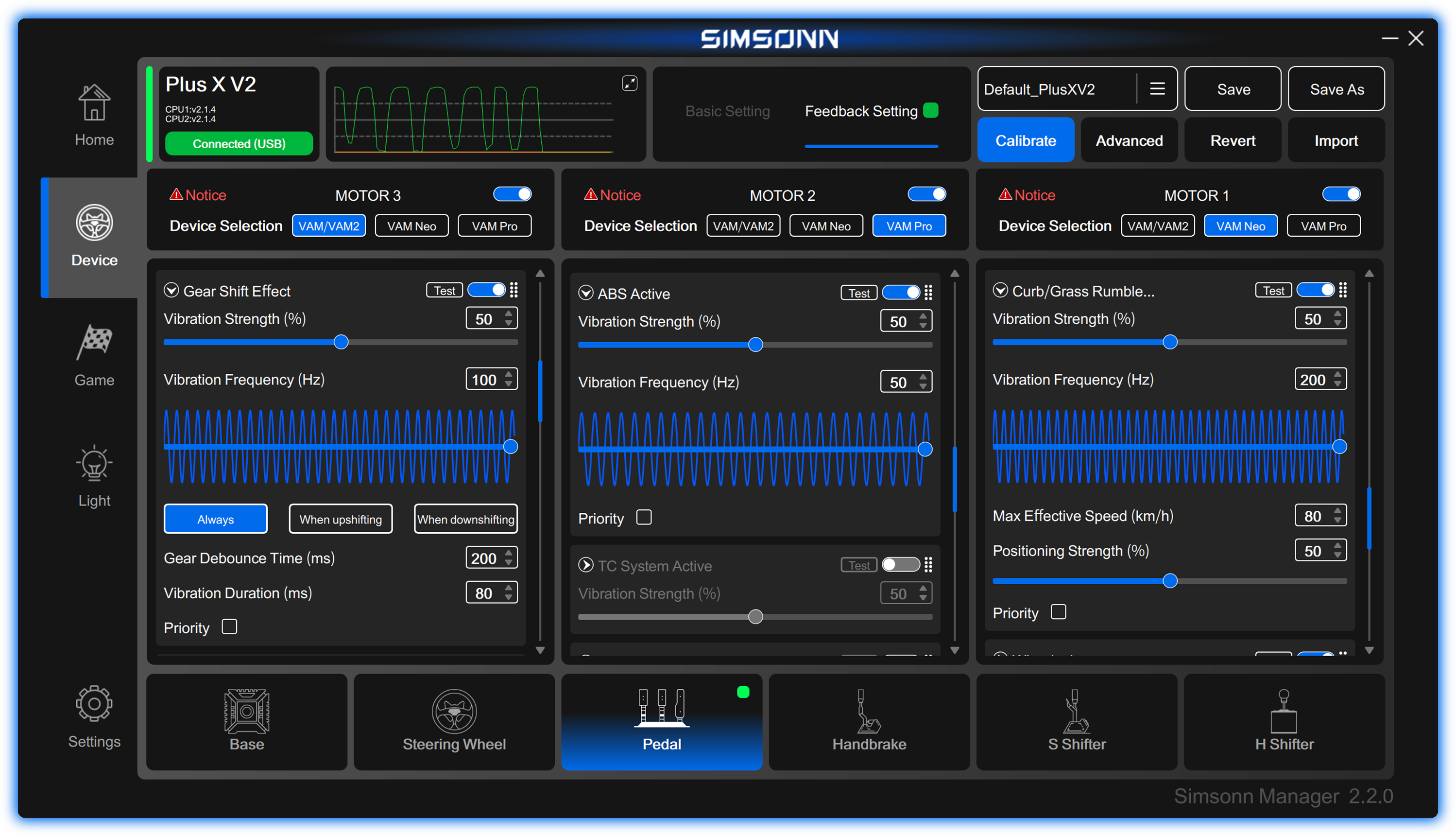

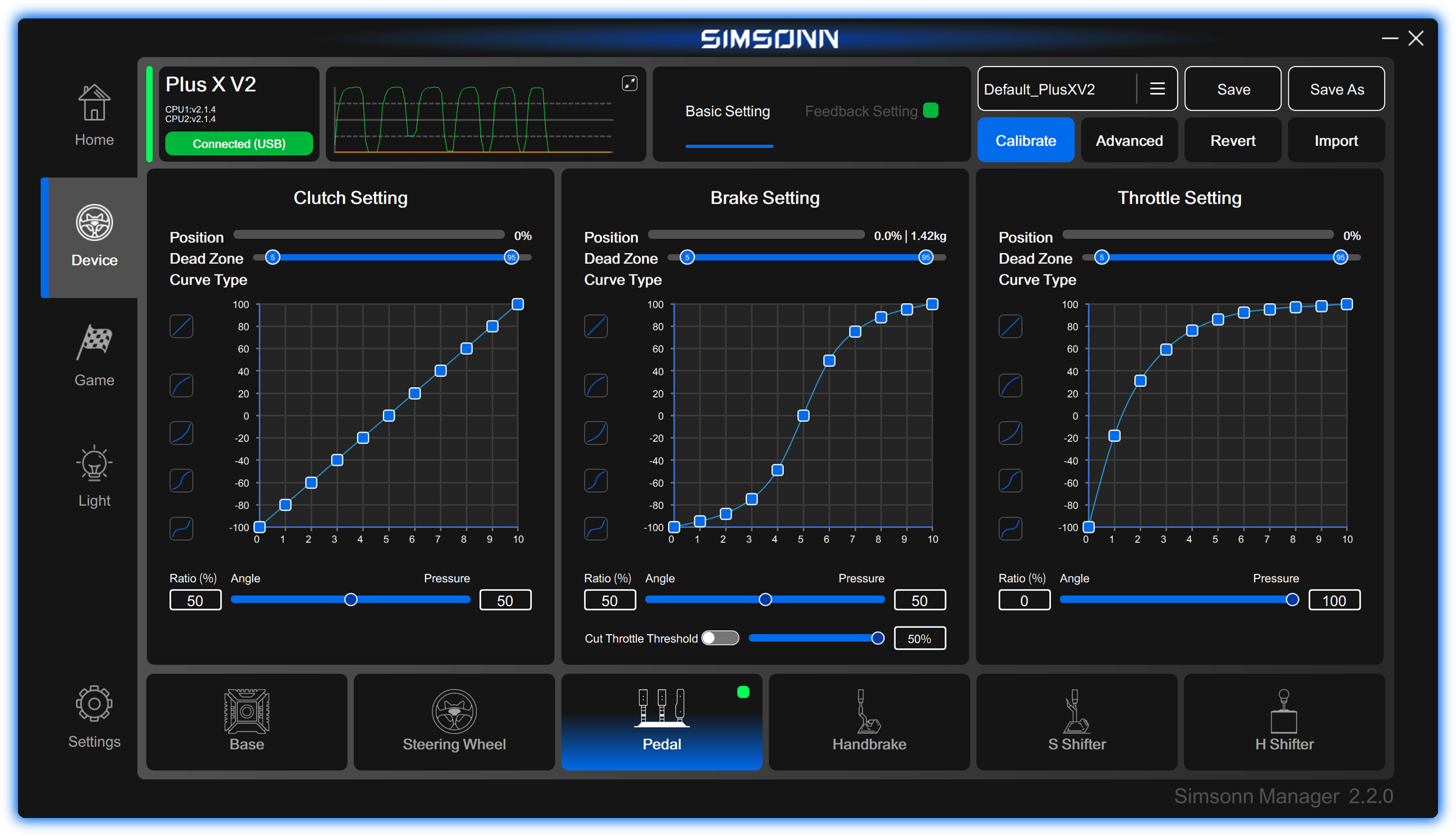

Professional-Grade Control Software
Compatible with the proprietary SIMSONN Manager software, allowing real-time monitoring of
pedal status while providing configuration options for output curves, dead zones, and other parameters.
The latest version adds sensor output ratio adjustment and introduces support for multiple telemetry features.
Closed Metal Housing with Enhanced EMI Protection
120MHz dual-processor chip
Supports VAM Series Vibration Assistance Modules
