SIMSONN VAM Pro — Sim Racing Pedal Haptic Reactor
Design
Powerful Performance,
Professional Choice
The all-aluminum alloy body is precision CNC-machined and houses a powerful linear vibration motor capable of delivering up to 0.75 kg of thrust. With rapid response, it provides clear and realistic feedback.
VAM Pro — Linear Motor Haptic Feedback for Sim Racing Pedals
Engineered for immersive sim racing, the VAM Pro haptic reactor mounts to your pedals and converts game telemetry into precise linear-motor feedback. Its six-part structure — a CNC-machined aluminum front shell, rubber sealing ring, counterweight block, linear ball bearings, die-cast aluminum middle frame, and custom linear motor — delivers instant, accurate vibration for brake lockup, wheel slip, curb hits, and ABS pulses in iRacing, Assetto Corsa Competizione, and all major racing sims.
VAM Series
Vibration Auxiliary Module
Accurately replicating the physical sensations of real racing cars, to deliver a truly
immersive and realistic tactile experience.
Vibration Module
Comparison
VAM Neo
39.6 * 39.6 * 49.4 mm
Aluminum Alloy
Linear Voice Coil Motor
Frequency Adjustment
Supported
Force Adjustment
232g
24V Power Adapter
Suitable for Throttle Pedal
VAM2
38 * 38 * 54 mm
Aluminum Alloy
Eccentric Rotating Mass Motor
Frequency Adjustment
not Supported
Force Adjustment
190g
24V Power Adapter
Suitable for Clutch Pedal
VAM Pro
46 * 46 * 72 mm
Aluminum Alloy
Linear Voice Coil Motor
Frequency Adjustment
Supported
Force Adjustment
477g
24V Power Adapter
Suitable for Brake Pedal
VAM
44 * 44 * 55 mm
Plastic
Eccentric Rotating Mass Motor
Frequency Adjustment
not Supported
Force Adjustment
115g
24V Power Adapter
Suitable for Clutch Pedal
Professional-Grade
Simulation Control Software

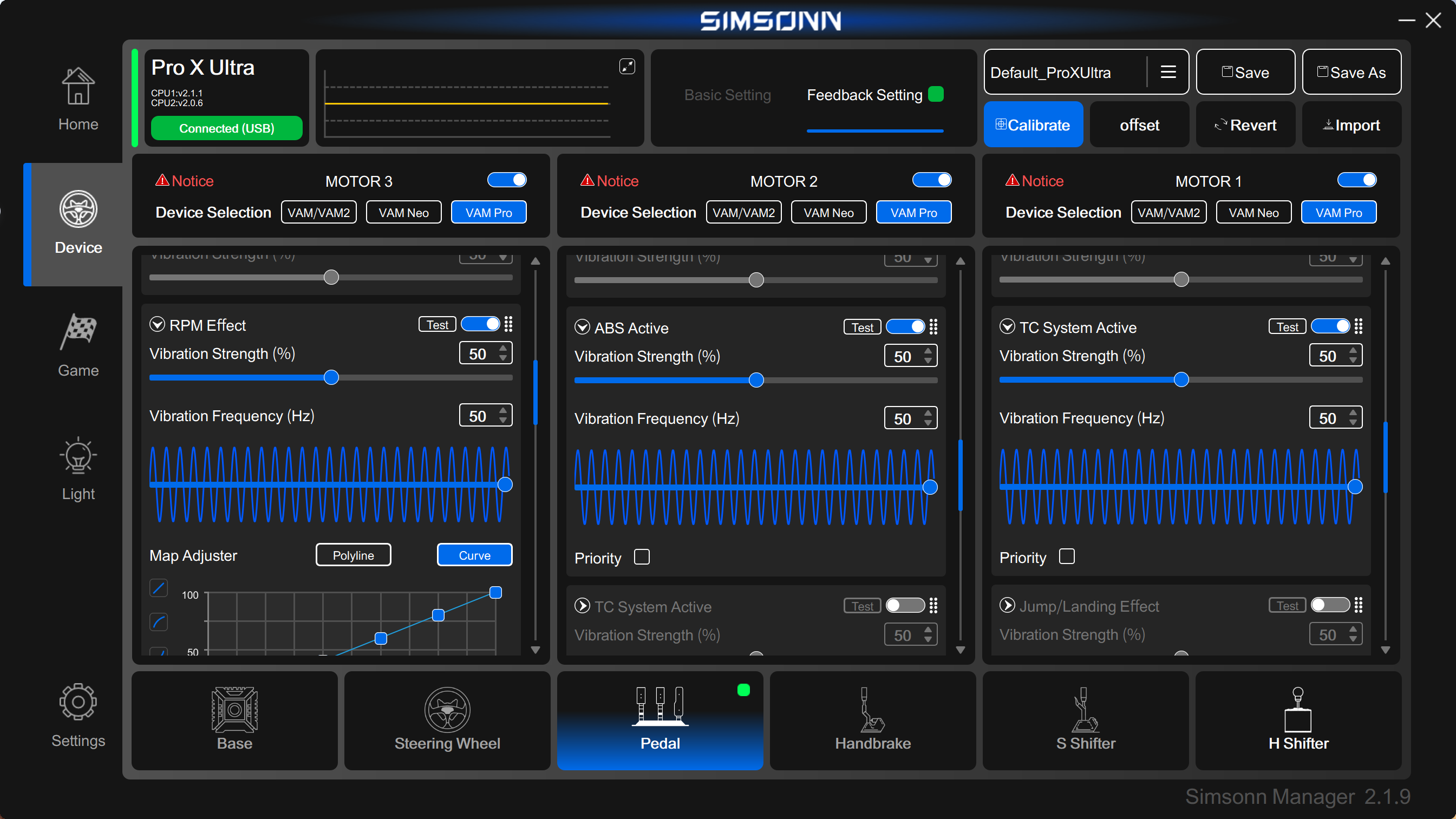

SIMSONN Plus X | SIMSONN Pro X Ultra Software — Customizable Pedal Vibration Feedback for ABS, Traction Control & Clutch
The free SIMSONN Plus X | SIMSONN Pro X Ultra tuning software gives you full control over your sim racing pedal feedback. Each of the three pedal motors — throttle, brake and clutch — can be independently configured with realistic telemetry-driven vibration effects, including ABS pulsation, traction control (TC) intervention, wheel lock, wheel slip, gear shift and RPM cues. Fine-tune every effect with adjustable vibration strength and frequency (e.g. 77% ABS strength at 50Hz), plus a clutch bite-point ratio range, so you feel exactly when the tires lock, the rear steps out, or the clutch engages — immersive, data-rich feedback that works seamlessly with load cell pedals and major sim racing titles. Profiles can be saved, imported and reverted in one click for different cars and tracks.
The proprietary SIMSONN Manager software adds multiple telemetry feedback features*1 to recreate the driving feel of various vehicles, while supporting precise adjustment of vibration frequency (10Hz–50Hz) and vibration intensity (0%–100%).
*1 V2.1.8 adds telemetry feedback features including acceleration/deceleration G-force, speed effects, collision effects, and road impact effects.
When using telemetry with SIMSONN Manager, be sure to select the mode that matches the model of your vibration motor in the software to prevent damage to the device. We reserve the right to refuse warranty or after-sales service for any damage caused by selecting a mode that does not match your product.
Full Compatibility
with SimHub
This product is now supported by SimHub, unlocking a wide range of parameter adjustments.
1.Requires SimHub version 9.9.2 or later.
2.Do not use SimHub and SIMSONN Manager simultaneously, as this may cause abnormal device operation.
Open Ecosystem
The VAM Series can be connected directly to a PC through the Plus X / Pro X Ultra Control Box*2. With a user-defined mounting solution, the Vibration Auxiliary Modules can be used with third-party pedals.
*2：The Plus X / Pro X Ultra Control Box is sold separately.
SIMSONN VAM Series
Vibration Auxiliary Modules
Third-party pedals
Plus X / Pro X Ultra
Control Box
PC
Product Installation
SIMSONN VAM Pro Haptic Reactor Installation Guide
Follow this step-by-step guide to install your SIMSONN VAM Pro haptic reactor on throttle, brake, and clutch pedals. From mounting the vibration motor with M4/M5/M6 bolts to connecting the control box and configuring feedback in SIMSONN Manager, the full setup takes about 15 minutes and works with Pro X, Pro X Ultra, and Plus X pedal sets.
SIMSONN VAM Pro Dimensions & Mounting Plate Specs
All measurements in millimeters. The VAM Pro haptic reactor body measures 72mm long with a 46×46mm mounting face using M4 bolts. Three adapter plates are included: a small U-shaped plate for the throttle (32.3×40.8mm), a large U-shaped plate for the brake (42.3×40.8mm), and a Z-shaped plate for the clutch (87.5×42mm), each with pre-drilled Ø4.2mm mounting holes for bolt-on installation to your sim racing pedals.
Package and
Accessories List
Explore all pedals
Brand: SIMSONN
Name: VAM Pro Vibration Auxiliary Module
Model: VAM Pro
Material: Aluminum Alloy
Package List
- Linear Vibration Motor
- U-shaped Adapter Plate - small (Throttle)
- U-shaped Adapter Plate - large (Brake)
- Z-shaped Adapter Plate (Clutch)
- 24V Power
- AdapterAccessories Kit
- Quick Guide
Accessories List
- Cable Clips*6
- Hex Socket Bolt (M5-20mm)*1
- Hex Lock Nut (M5)*1
- Hex Socket Bolts (M4-10mm)*12
- Hex L-Wrench (M4+M5+M6)*1
- Open-end Wrench(M5)*1
